Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
Notes:
•Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationsinthistopic.
•IfyouremovetheIDM,theserverwilllosethediagnosticLEDsontheIDMpanel.
ToreplacetheIDM,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Iftheserverisinstalledinarackcabinet,removetheserverfromtherackcabinetandplaceitonaat,
clean,andstatic-protectivesurface.SeetheRackInstallationInstructionsthatcomeswiththeserver.
3.Removetheservercover.See“Removingtheservercover”onpage69.
4.LocatetheIDM.See“Servercomponents”onpage22.
5.DisconnectthecablefromtherearoftheIDM.
6.RemovethetwoscrewsthatsecuretheIDM,andthencarefullyremovetheIDMfromthechassis.
ID
Mem
CPU
PSU

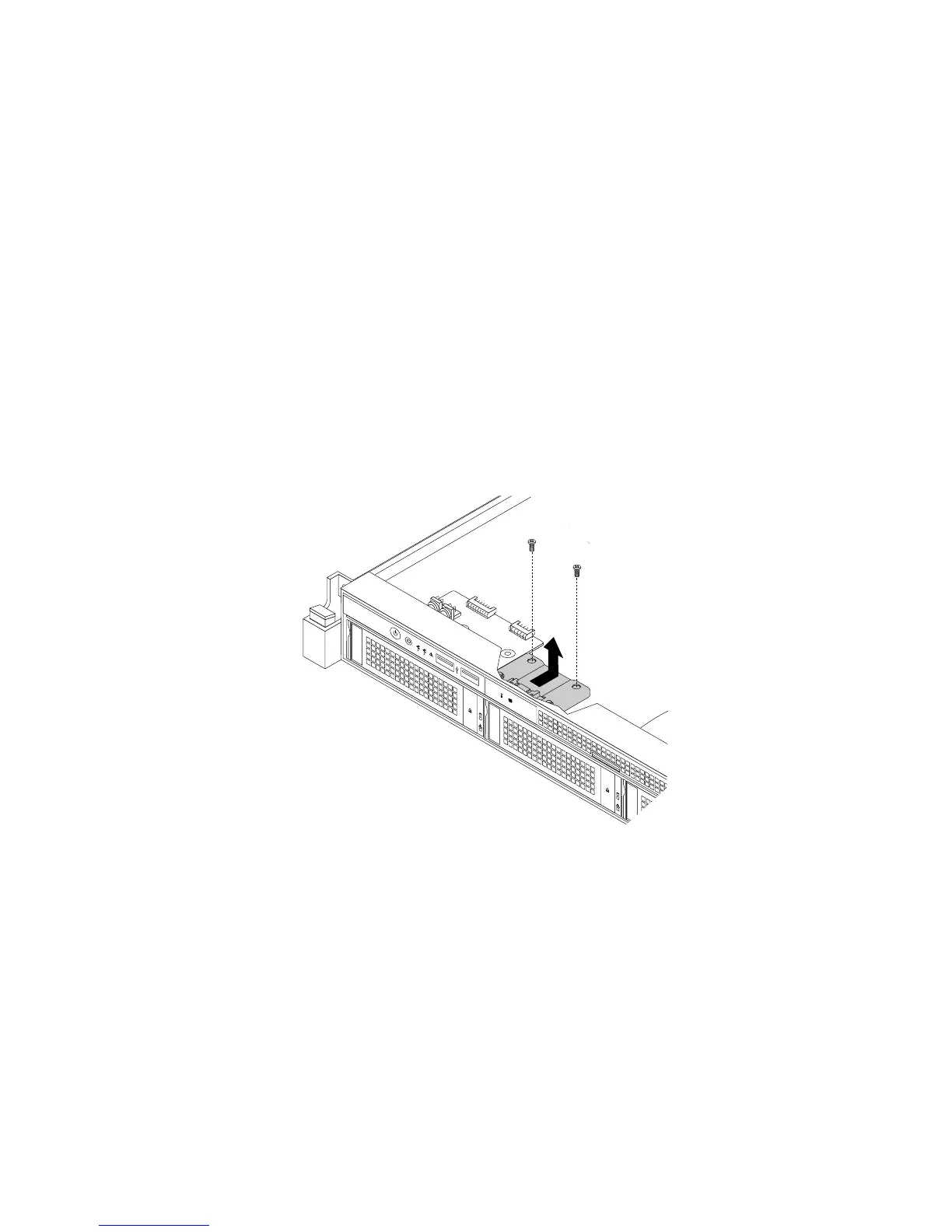

Figure89.RemovingtheIDM
7.Touchthestatic-protectivepackagethatcontainsthenewIDMtoanyunpaintedsurfaceontheoutside
oftheserver.Then,takethenewIDMoutofthepackage.
138ThinkServerRD330HardwareMaintenanceManual
