1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Iftheserverisinstalledinarackcabinet,removetheserverfromtherackcabinetandplaceitonaat,
clean,andstatic-protectivesurface.SeetheRackInstallationInstructionsthatcomeswiththeserver.
3.Removetheservercover.See“Removingtheservercover”onpage69.
4.Removethecoolingshroud.See“Removingandreinstallingthecoolingshroud”onpage73.
5.Locatetherisercardassembly1.See“Servercomponents”onpage22.
6.Grasptherisercardassembly1byitsedgesandcarefullyliftitstraightupandoffthechassis.

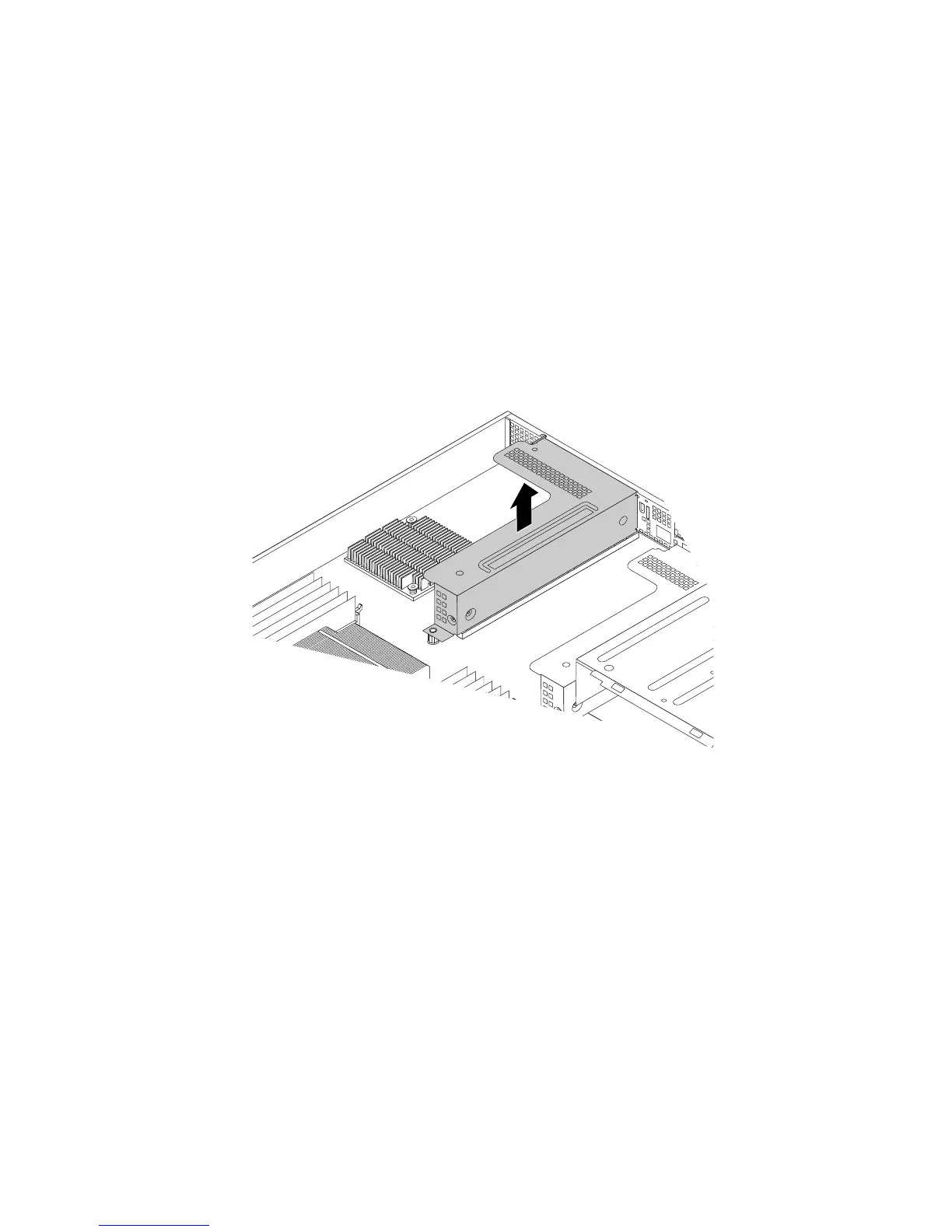

Figure95.Liftingtherisercardassembly1offthechassis
7.IfthereisanyPCIExpresscard(suchasanEthernetcard)installedontherisercardassembly1,note
downthecableconnections,disconnectallcablesfromthecard,andthencompletelyremovetheriser
cardassembly1outofthechassis.Then,removethePCIExpresscardfromtherisercardassembly1.
See“RemovingtheEthernetcard”onpage83
.
8.Touchthestatic-protectivepackagethatcontainsthenewrisercardassembly1toanyunpainted
surfaceontheoutsideoftheserver.Then,takethenewrisercardassembly1outofthepackage.
