Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
Notes:
•UseanydocumentationthatcomeswiththeEthernetcardandfollowthoseinstructionsinadditionto
theinstructionsinthistopic.
•Dependingonthespecictype,theEthernetcardmightlookdifferentfromtheillustrationinthistopic.
ToremovetheEthernetcard,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Iftheserverisinstalledinarackcabinet,removetheserverfromtherackcabinetandplaceitonaat,
clean,andstatic-protectivesurface.SeetheRackInstallationInstructionsthatcomeswiththeserver.
3.Removetheservercover.See“Removingtheservercover”onpage69.
4.Removetherisercardassembly1andlayitupsidedownonaat,clean,andstatic-protectivesurface.
See“Replacingtherisercardassembly1”onpage143.
Note:UsuallyanEthernetcardisinstalledontherisercardassembly1andalsocanbeinstalledin
anyPCIExpresscardslotthatsupportsit.See“Rearviewoftheserver”onpage20
toidentifythe
PCIExpresscardslotsofyourserver.
5.LocatetheEthernetcardontherisercardassembly1.DependingonthetypeoftheEthernetcard,you
mightneedtodisconnectallcablesfromtheEthernetcard.Then,grasptheEthernetcardbyitsedges
andcarefullypullitoutoftherisercardassembly1.
Note:TheEthernetcardmightttightlyintothePCIExpresscardslot.Ifnecessary,alternatemoving
eachsideoftheEthernetcardasmallandequalamountuntilitiscompletelyremovedfromtheslot.

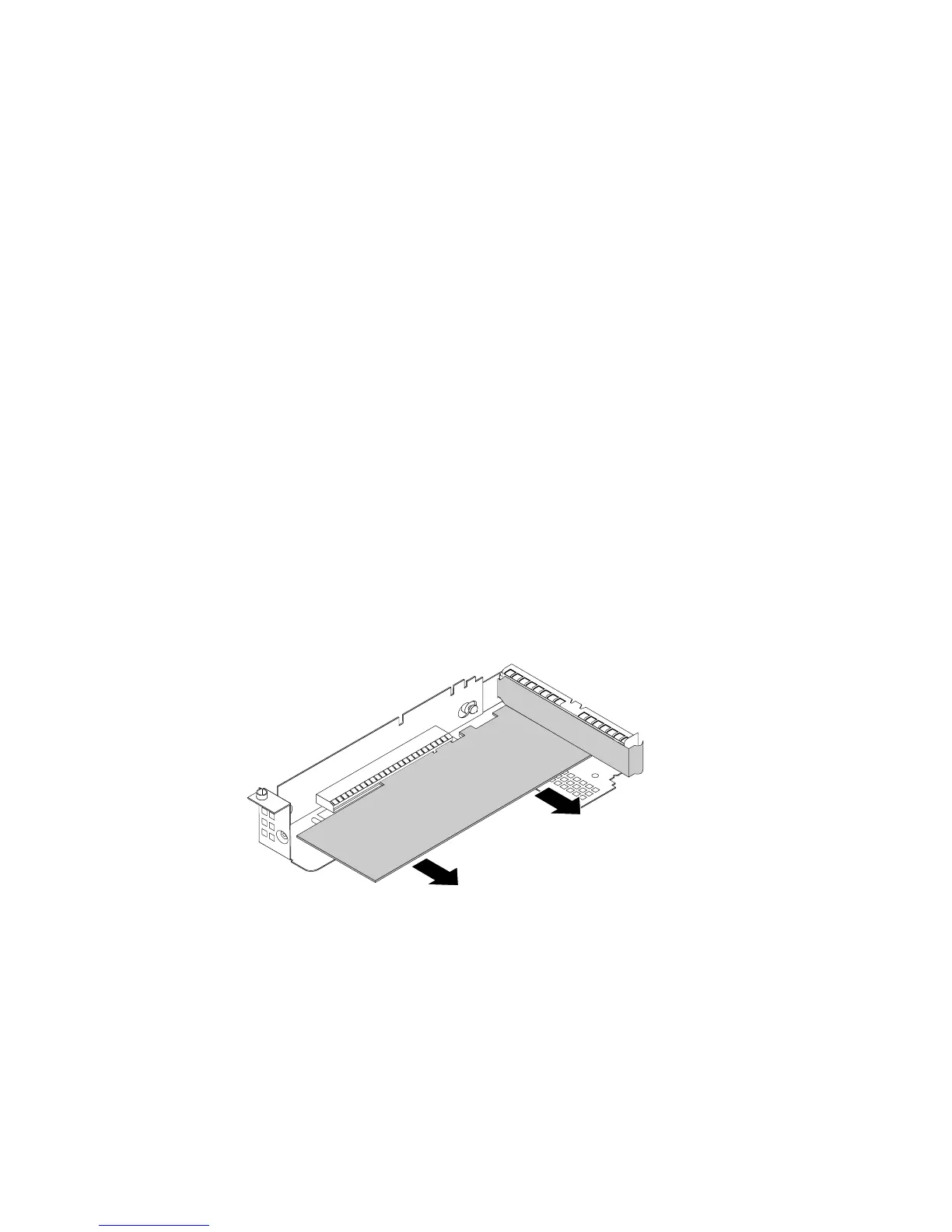

Figure41.RemovingtheEthernetcard
6.InstallanewEthernetcardtoreplacetheoldoneorinstallaPCIExpresscardslotbrackettocoverthe
place.See“InstallingtheEthernetcard”onpage81.
7.Reinstalltherisercardassembly1.See“Replacingtherisercardassembly1”onpage143.
8.IfyouareinstructedtoreturntheoldEthernetcard,followallpackaginginstructionsanduseany
packagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
