5.Disconnectthefollowingsignalcablesfromthesignalcableconnectorsonthebackplaneforserver
modelswithtwelve3.5-inchhard-disk-drivebays.
•SignalcableforthefrontcontrolsandLEDsontherightrackhandle
•SignalcableforthefrontUSBconnectorsontheleftrackhandle

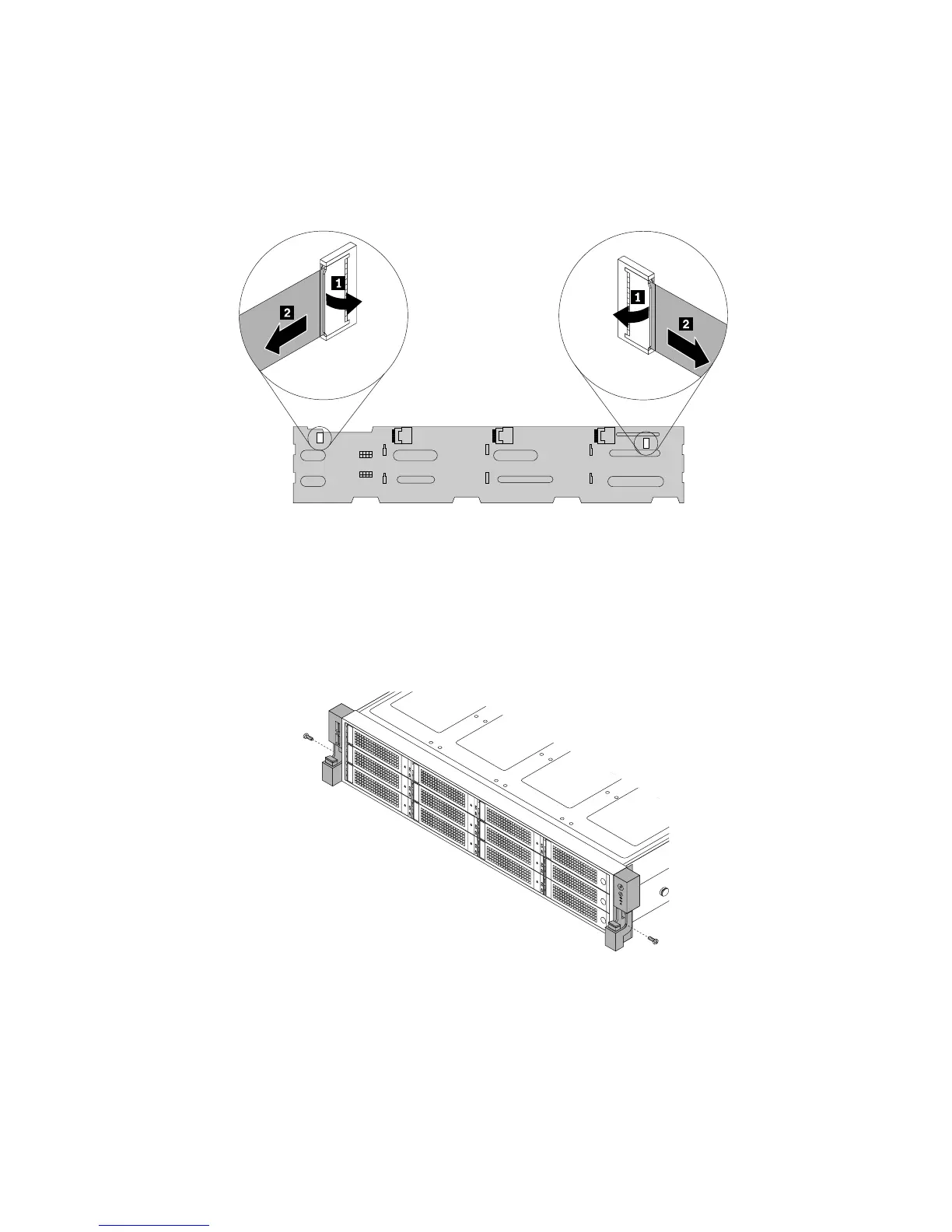

Figure47.Disconnectingtherackhandlesignalcablesfromthebackplane
6.Oneachsideoftheserver,removethescrewthatsecurestherackhandleandthenremovetherack
handlefromthechassis.
Note:Carefullypullthesignalcableofeachrackhandleoutoftheholeinthechassiswhenyouare
removingtherackhandles.
Figure48.Removingtherackhandlesforservermodelswithtwelve3.5-inchhard-disk-drivebays
7.Toreinstalltherackhandlesforservermodelswithtwelve3.5-inchhard-disk-drivebays,dothe
following:
94ThinkServerRD440UserGuideandHardwareMaintenanceManual
