5.RemovetherisercardassemblywherethePCIExpresssolid-statedriveisinstalledandlaytheriser
cardassemblyupsidedownonaflat,clean,andstatic-protectivesurface.See“Replacingtherisercard
assembly1”onpage183
or“Replacingtherisercardassembly2”onpage185.
6.Ifanexpandercard,anEthernetcard,oraRAIDcardisinstalledontherisercardassembly,youmight
needtoremovethemfirstforeasieroperation.See“Installingorremovingtheexpandercard”onpage
116,“InstallingorremovinganEthernetcard”onpage120,or“RemovingtheRAIDcard”onpage109.
7.GraspthePCIExpresssolid-statedrivebyitsedgesandcarefullypullitoutofthePCIExpresscardslot.
Note:ThePCIExpresssolid-statedrivemightfittightlyintotheslot.Ifnecessary,alternatemoving
eachsideofthePCIExpresssolid-statedriveasmallandequalamountuntilitiscompletelyremoved
fromtheslot.

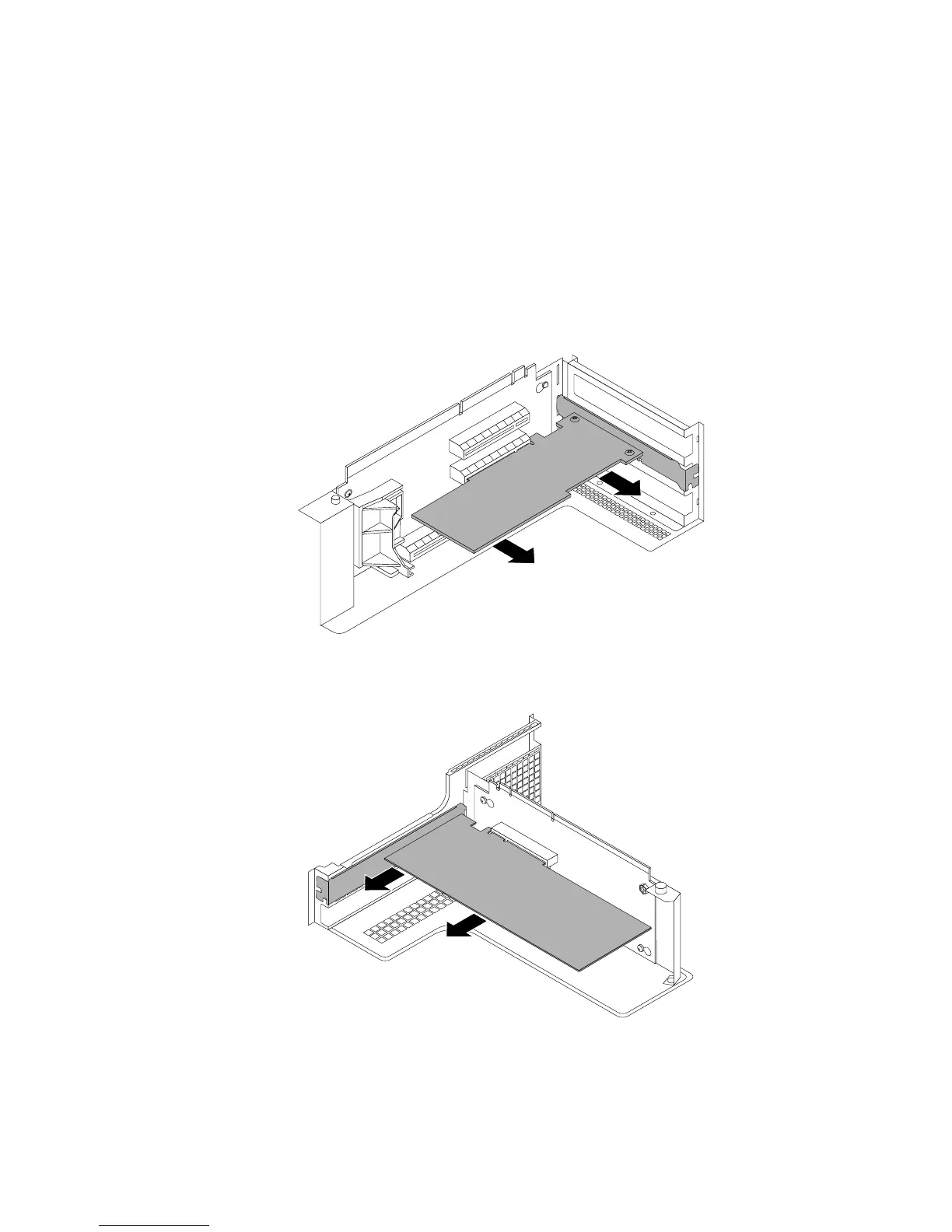

Figure118.RemovingthePCIExpresssolid-statedrivefromtherisercardassembly1
Figure119.RemovingthePCIExpresssolid-statedrivefromtherisercardassembly2
8.Touchthestatic-protectivepackagethatcontainsthenewPCIExpresssolid-statedrivetoany
unpaintedsurfaceontheoutsideoftheserver.Then,takethenewPCIExpresssolid-statedriveout
ofthepackage.
Chapter6.Installing,removing,orreplacinghardware163
