Note:CarefullyhandlethePCIExpresssolid-statedrivebyitsedges.
9.Dooneofthefollowing:
•ToinstallthenewPCIExpresssolid-statedriveontherisercardassembly1,notethedottedlines
inthefollowingillustrationtohelpyoucorrectlypositionthePCIExpresssolid-statedrivenearthe
PCIExpresscardslotontherisercardassembly1.Then,carefullypressthenewPCIExpress
solid-statedrivestraightintotheslotinthemiddleuntilitissecurelyseatedanditsbracketalsois
securedbytherisercardassembly1.

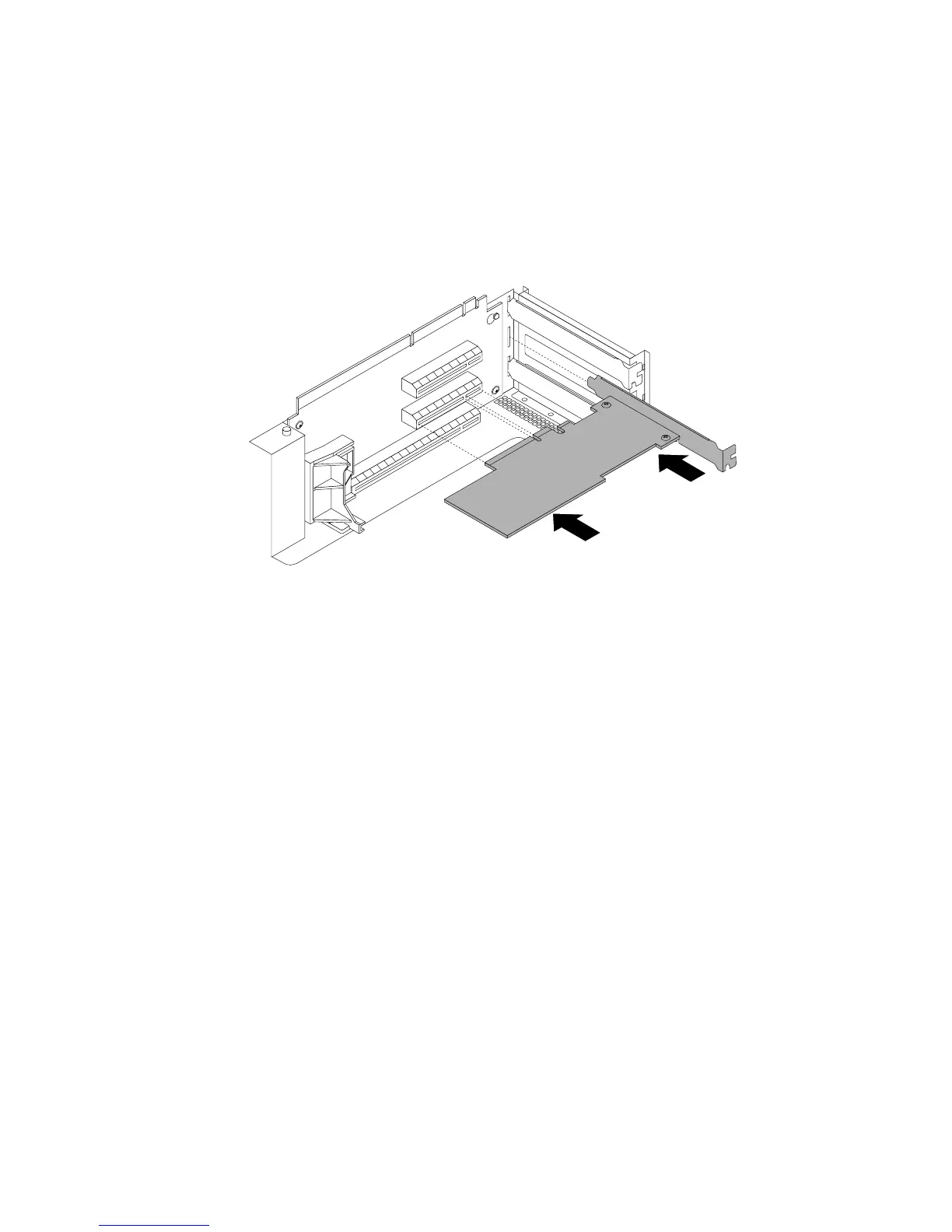

Figure120.InstallingthePCIExpresssolid-statedriveontherisercardassembly1
164ThinkServerRD440UserGuideandHardwareMaintenanceManual
