7.PositionthenewThinkServerRAIDSuperCapacitorModulewiththebracketonthecoolingshroudso
thatonesideofthebracketissecuredbythetwotabs
2.Then,presstheothersideofthebracket
straightdown.Ensurethatthetab1passesthroughthecorrespondingholeinthebracketandsecures
thebracketinplace.

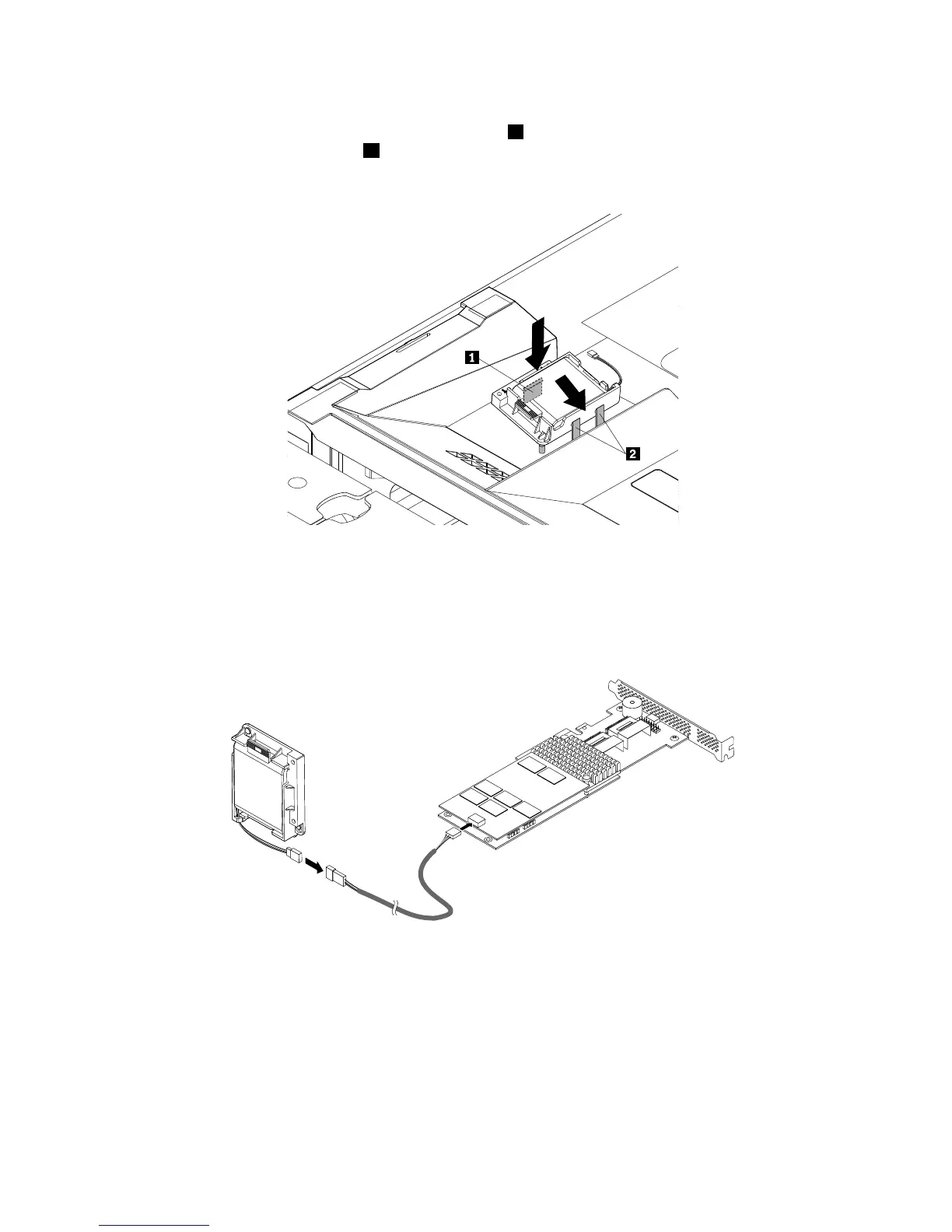

Figure125.InstallingtheThinkServerRAIDSuperCapacitorModulewiththebracketontothecoolingshroud
8.ConnectthecableofthenewThinkServerRAIDSuperCapacitorModuletotheThinkServerRAID
SuperCapacitorModuleconnectoronthePCIExpresscardusingtheextendedcableshippedwith
theThinkServerRAIDSuperCapacitorModule.
Figure126.ConnectingthecableoftheThinkServerRAIDSuperCapacitorModuletothePCIExpresscard
9.IfyouareinstructedtoreturnthefailingThinkServerRAIDSuperCapacitorModule,followallpackaging
instructionsanduseanypackagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletethereplacementprocedure,goto“Completingthepartsreplacement”onpage206
.
168ThinkServerRD440UserGuideandHardwareMaintenanceManual
