2.
Locat
e
the
air
baffle
in
the
server
and
lift
it
out
of
the
server
.

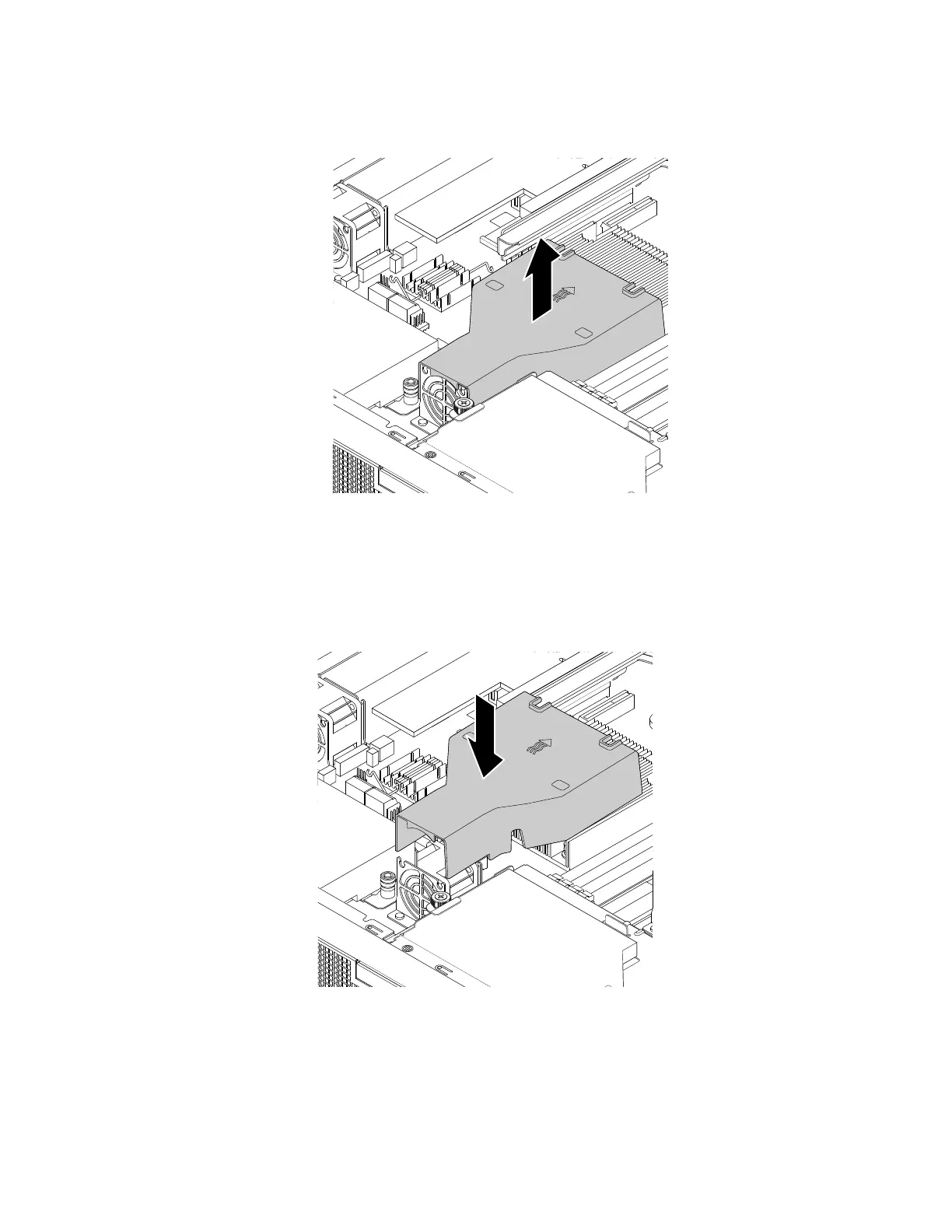

Figure
22.
Removing
the
air
baffle
Installing
the
air
baffle
Note
the
orientation
of
the
air
baffle
and
place
it
above
the
heat
sink.
Then,
lower
the
air
baffle
into
the
chassis
until
it
is
secured
int
o
position.
Figure
23.
Installing
the
air
baffle
T
o
complet
e
the
parts
r
eplacement,
go
to
“Completing
the
parts
replacement”
on
page
95.
Chapter
5
.
Replacing
hardware
51
