Lenovo ThinkSystem SR650 - Remove the Air Baffle

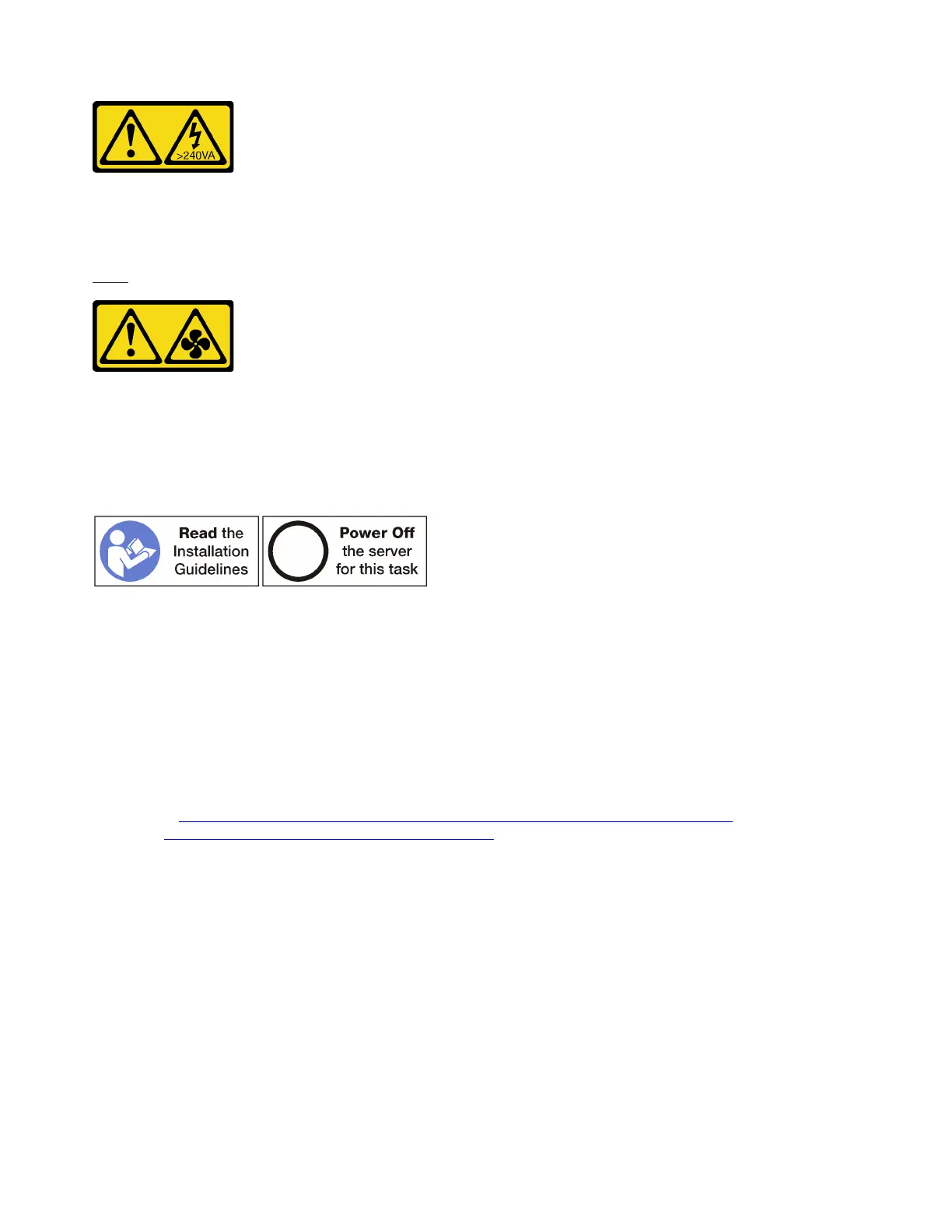

CAUTION:
Hazardous energy present. Voltages with hazardous energy might cause heating when shorted with
metal, which might result in spattered metal, burns, or both.
S017
CAUTION:
Hazardous moving fan blades nearby.
Remove the air baffle
Use this information to remove the air baffle.
Before removing the air baffle:
1. Remove the top cover. See “Remove the top cover” on page 103.
2. If there is a RAID super capacitor module installed on the air baffle, disconnect the RAID super capacitor
module cable first.
3. If you are removing the air baffle for server models with a GPU installed, remove the GPU first. See
“Remove a GPU” on page 157.
To remove the air baffle, complete the following step:
Watch the procedure. A video of the removal process is available:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-A25P7vBoGa_wn7D7XTgDS_
• Youku: http://list.youku.com/albumlist/show/id_50483444
Step 1. Grasp the air baffle and carefully lift it out of the server.
Attention: For proper cooling and airflow, install the air baffle before you power on the server.
Operating the server with the air baffle removed might damage server components.
