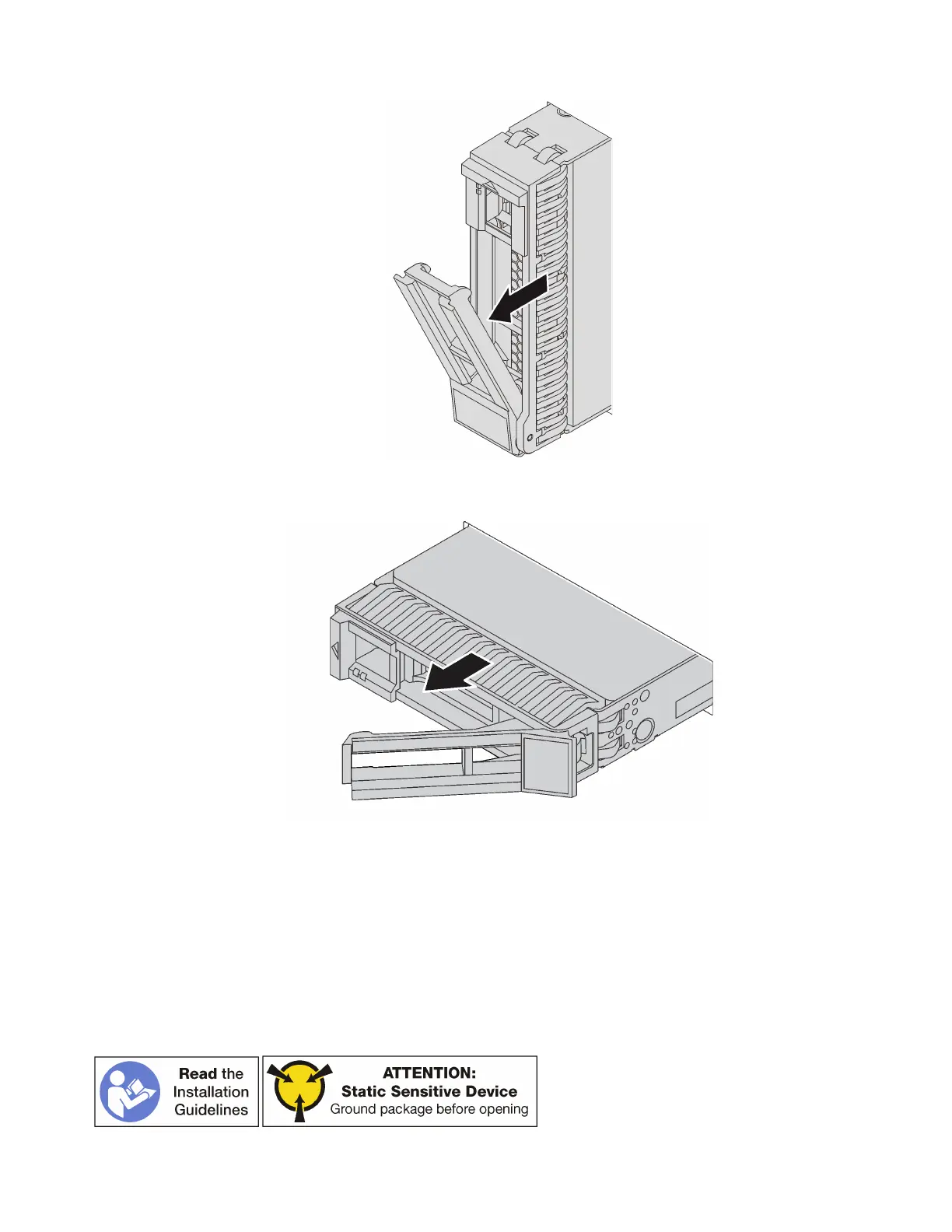

Figure 91. 2.5-inch hot-swap drive removal
Figure 92. 3.5-inch hot-swap drive removal
After removing a hot-swap drive:
1. Install the drive filler or a new drive to cover the drive bay. See “Install a hot-swap drive” on page 122.
2. If you are instructed to return the old hot-swap drive, follow all packaging instructions and use any
packaging materials that are provided.
Install a hot-swap drive
Use this information to install a hot-swap drive.
122 ThinkSystem SR650 Maintenance Manual
