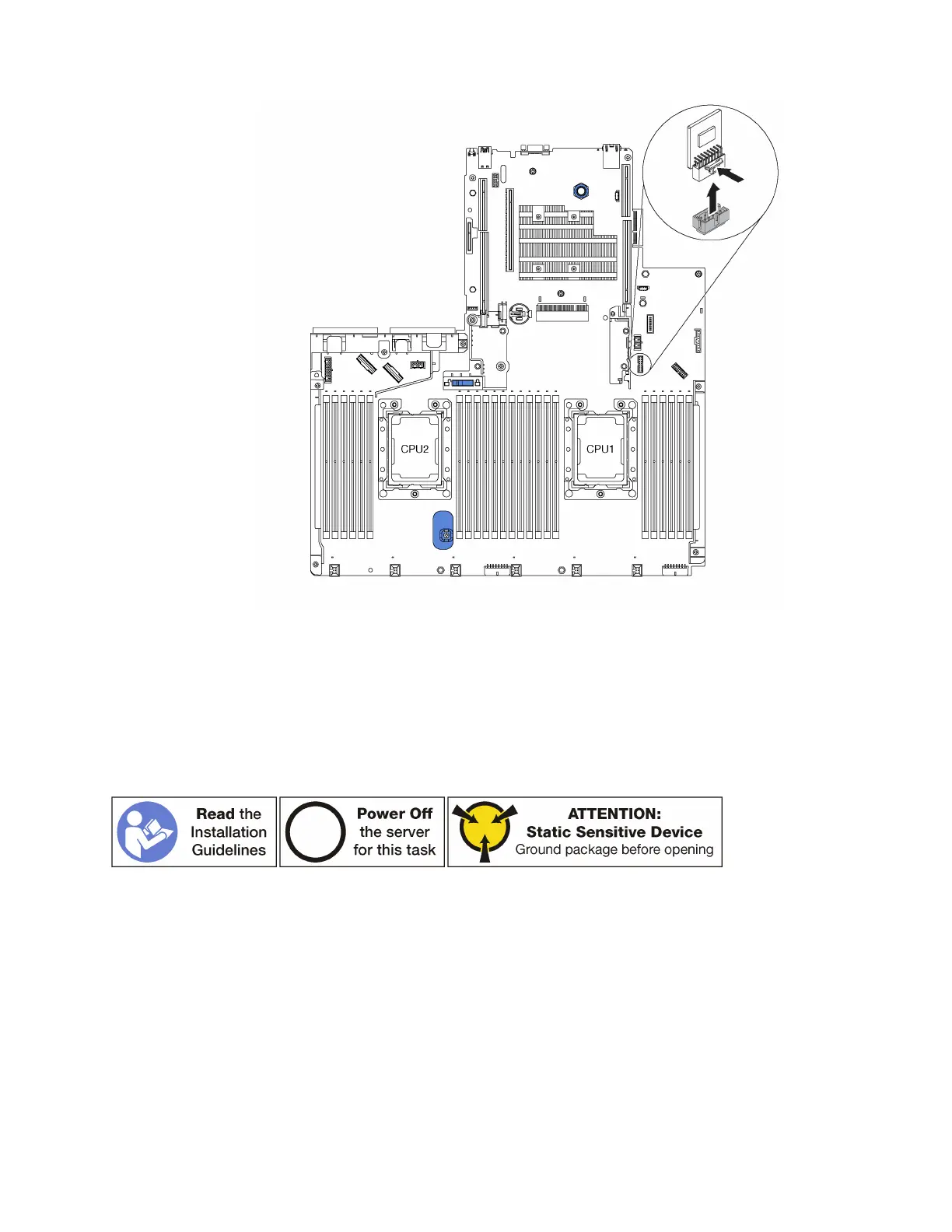

Figure 143. TCM removal
If you are instructed to return the old TCM, follow all packaging instructions and use any packaging materials
that are provided.
Install the TCM (for China only)
Use this information to install the TCM.
Before installing the TCM, touch the static-protective package that contains the new TCM to any unpainted
surface on the outside of the server. Then, take the new TCM out of the package and place it on a static-
protective surface.
To install the TCM, complete the following steps:
Step 1. Locate the TCM connector on the system board.
Step 2. Insert the TCM into the TCM connector on the system board.
Note: Carefully handle the TCM by its edges.
Chapter 3. Hardware replacement procedures 183
