Remove the system fan cage
Use this information to remove the system fan cage.
Before removing the system fan cage:
1. Remove the top cover. See “Remove the top cover” on page 103.
2. If you are replacing the system fan cage, remove all system fans first. See “Remove a system fan” on
page 112. If you are removing the system fan cage to access other components, you can remove it with
the system fans installed.
To remove the system fan cage, complete the following steps:
Watch the procedure. A video of the removal process is available:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-A25P7vBoGa_wn7D7XTgDS_
• Youku: http://list.youku.com/albumlist/show/id_50483444

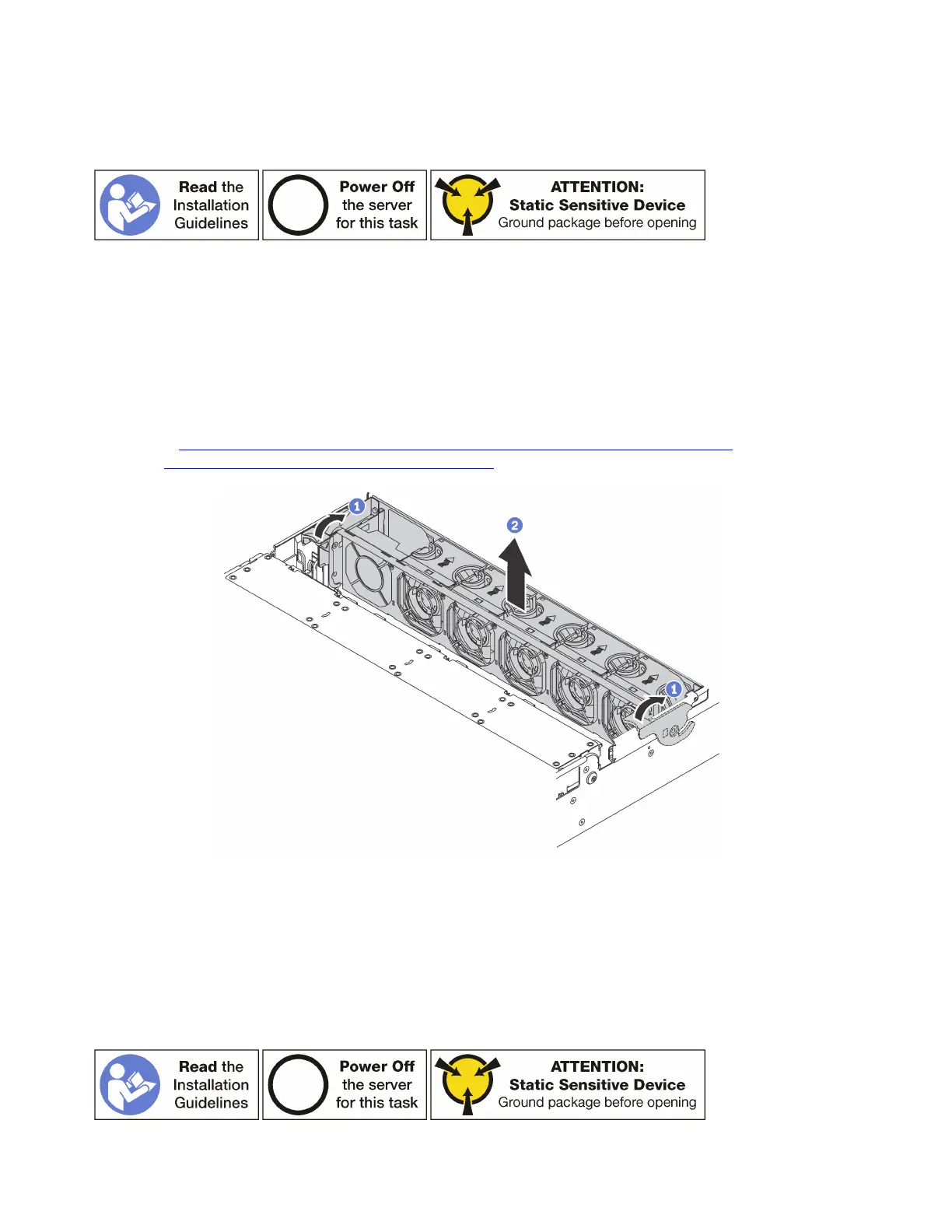

Figure 85. System fan cage removal
Step 1. Rotate the levers of the system fan cage to the rear of the server.
Step 2. Lift the system fan cage straight up and out of the chassis.
Install the system fan cage
Use this information to install the system fan cage.
116 ThinkSystem SR650 Maintenance Manual
