Remove a DIMM
Use this information to remove a DIMM.
Attention:
• Disconnect all power cords for this task.
• DIMMs are sensitive to static discharge and require special handling. In addition to the standard
guidelines for Handling static-sensitive devices:
– Always wear an electrostatic-discharge strap when removing or installing DIMMs. Electrostatic-
discharge gloves can also be used.
– Never hold two or more DIMMs together so that they touch. Do not stack DIMMs directly on top of
each other during storage.
– Never touch the gold DIMM connector contacts or allow these contacts to touch the outside of the
DIMM connector housing.
– Handle DIMMs with care: never bend, twist, or drop a DIMM.
Before removing a DIMM:
1. Remove the top cover. See “Remove the top cover” on page 103.
2. Remove the air baffle. See “Remove the air baffle” on page 108.
To remove a DIMM, complete the following steps:
Watch the procedure. A video of the removal process is available:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-A25P7vBoGa_wn7D7XTgDS_
• Youku: http://list.youku.com/albumlist/show/id_50483444

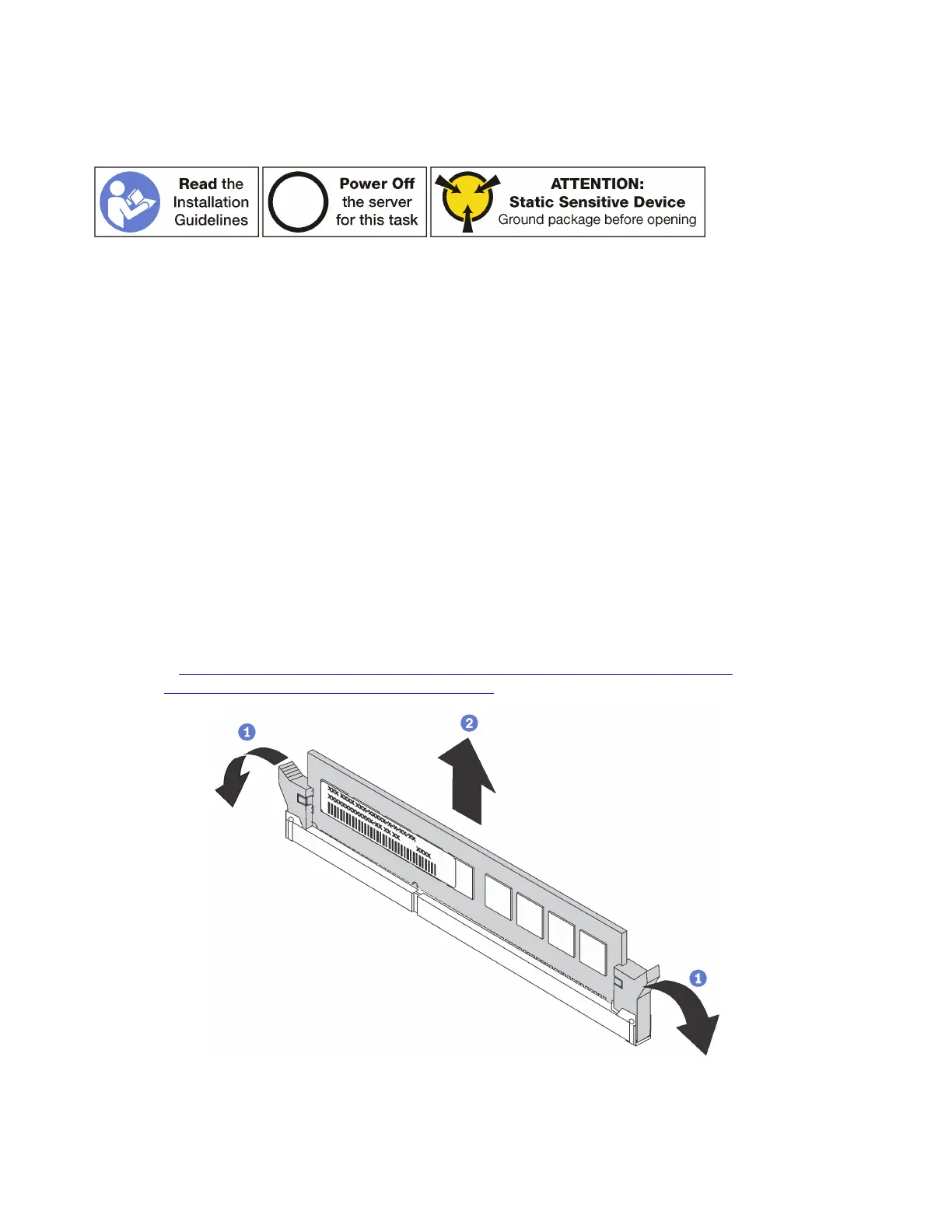

Figure 100. DIMM removal
132 ThinkSystem SR650 Maintenance Manual
