CAUTION:
Hazardous moving fan blades nearby.
Attention: When installing a system fan without powering off the server, do not touch the system fan cage.
To install a system fan, complete the following steps:
Watch the procedure. A video of the installation process is available:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-A25P7vBoGa_wn7D7XTgDS_
• Youku: http://list.youku.com/albumlist/show/id_50483444
Step 1. Touch the static-protective package that contains the new system fan to any unpainted surface on
the outside of the server. Then, take the new system fan out of the package and place it on a static-
protective surface.
Step 2. Position the system fan above the system fan cage. The system fan connector on the bottom of the
system fan should face the rear of the chassis. Press the system fan straight down until it is seated
into place.

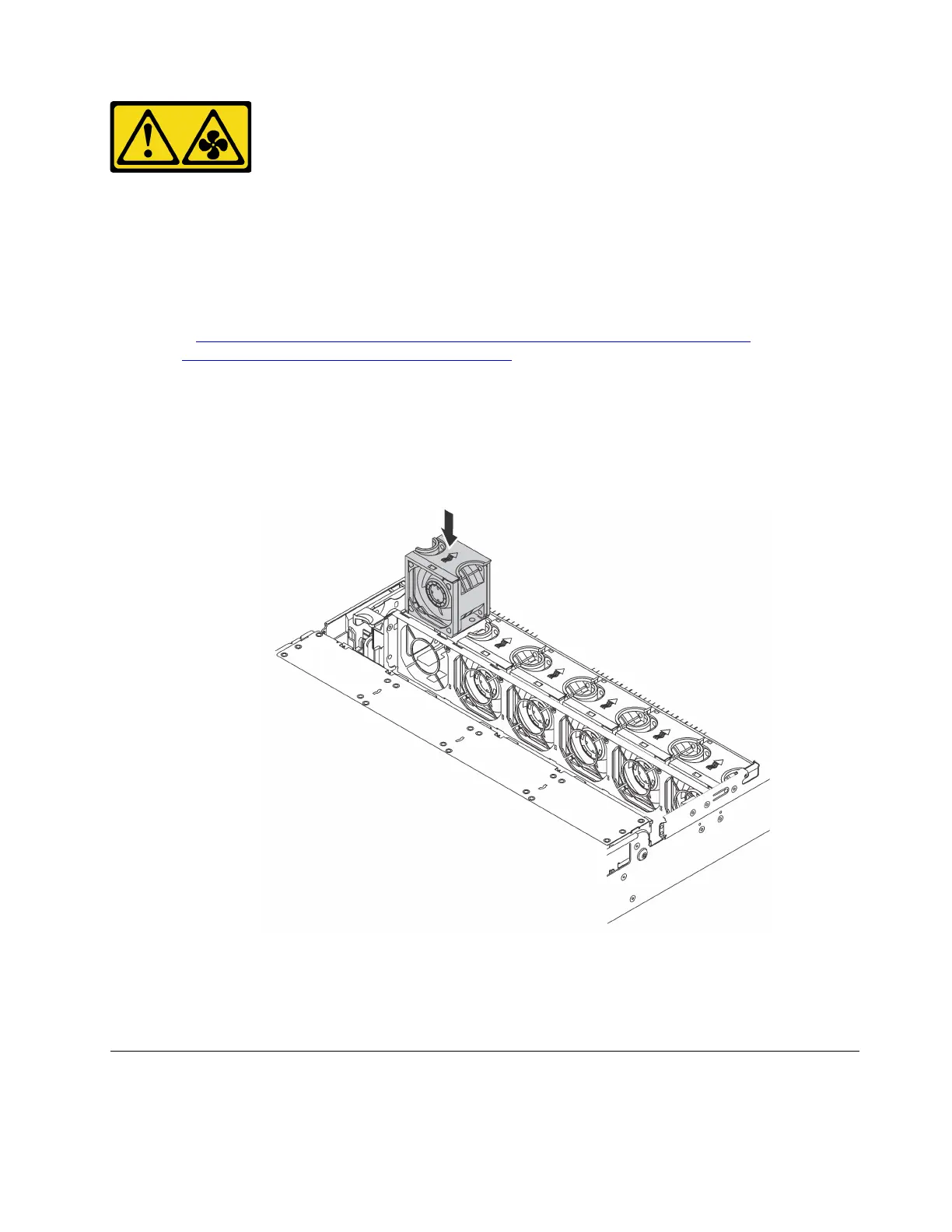

Figure 84. System fan installation
After installing the system fan, complete the parts replacement. See “Completing the parts replacement” on
page 203.
System fan cage replacement
Use this information to remove and install the system fan cage.
