Watch the procedure. A video of the installation process is available:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-A25P7vBoGa_wn7D7XTgDS_
• Youku: http://list.youku.com/albumlist/show/id_50483444
Step 1. Position the PCIe adapter near the PCIe slot. Then, carefully press the PCIe adapter straight into
the slot until it is securely seated and its bracket also is secured by the chassis.

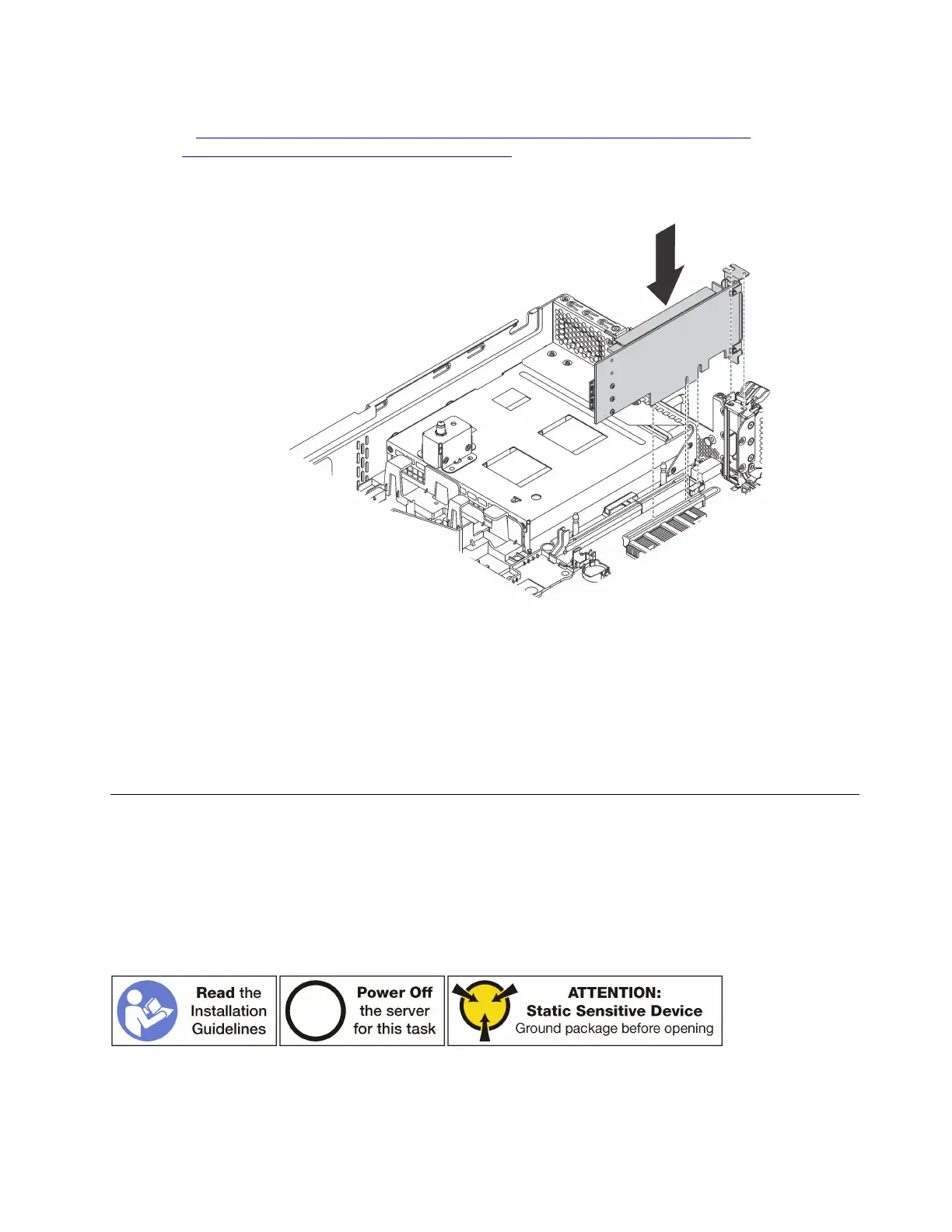

Figure 119. Installing a PCIe adapter on the system board
Step 2. Pivot the PCIe adapter retention latch to the closed position to secure the PCIe adapter in position.
After installing the PCIe adapter on the system board:
1. Refer to your record to reconnect the cables.
2. Complete the parts replacement. See “Completing the parts replacement” on page 203.
GPU replacement
Use this information to remove and install the GPU.
This topic applies only to the server models that have GPUs installed.
Remove a GPU
Use this information to remove a GPU.
Notes:
• Depending on the specific type, your GPU might look different from the illustration in this topic.
Chapter 3. Hardware replacement procedures 157
