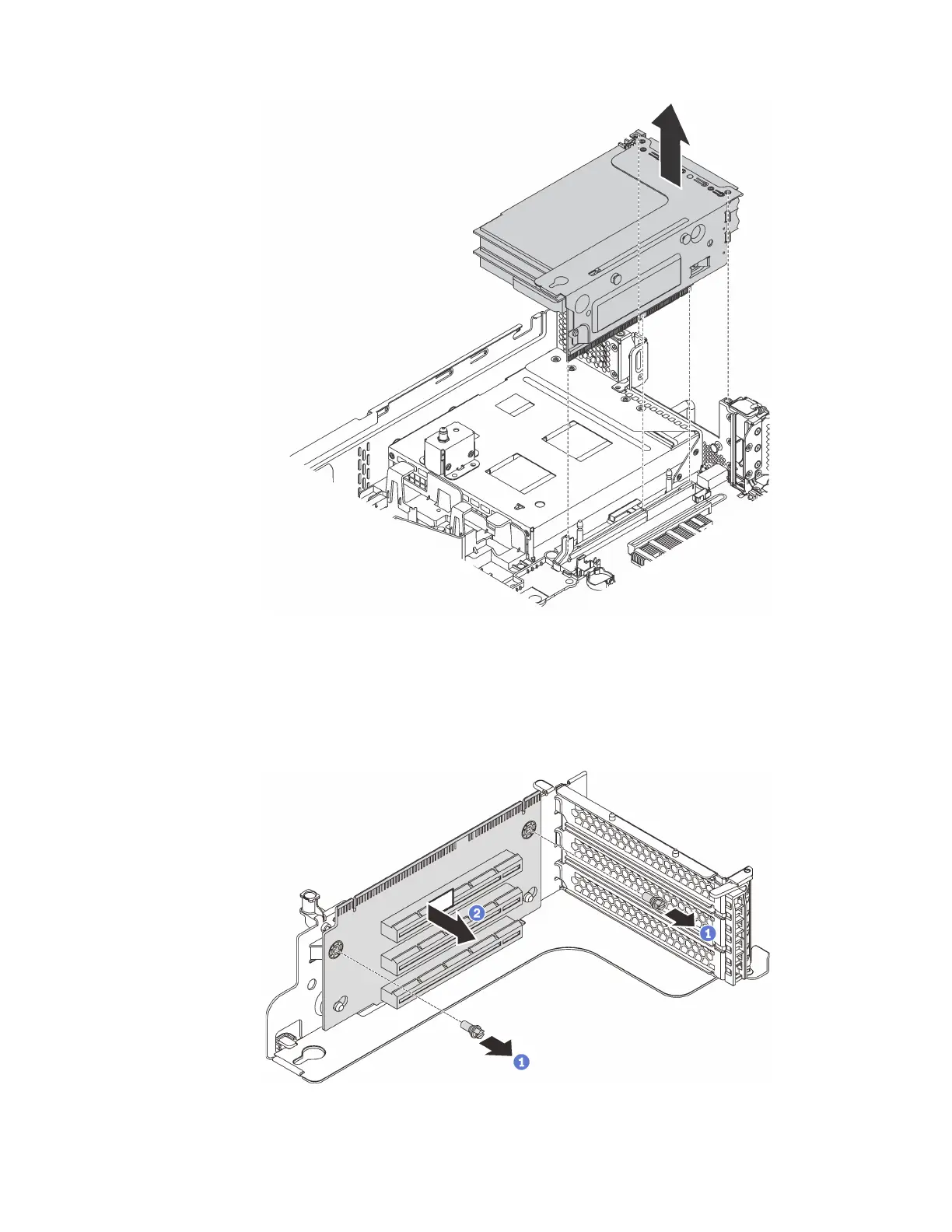

Figure 108. Riser 2 assembly removal
Step 2. Remove the PCIe adapters that are installed on the riser card. See “Remove a PCIe adapter from
the riser assembly” on page 151.
Step 3. Remove the two screws that secure the failing riser card. Then, remove the failing riser card from
the bracket.
Figure 109. Riser card removal
Chapter 3. Hardware replacement procedures 147
