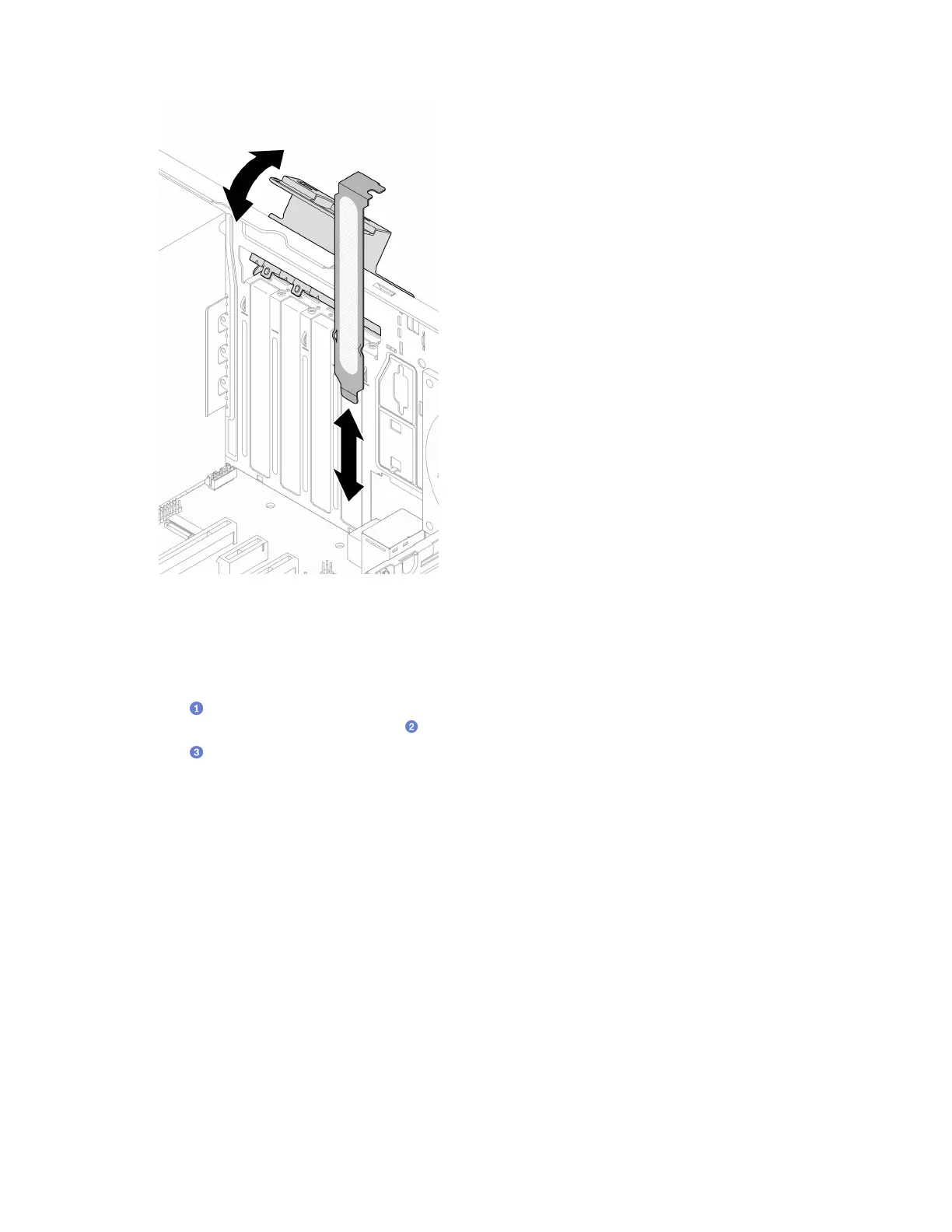

Figure 70. Removing a PCIe adapter bracket
Step 2. Locate the applicable PCIe slot. For more information about the PCIe slots, see “Specifications” on
page 3.
Step 3. Install the PCIe adapter.
a.
Align the PCIe adapter to the slot; then, gently press both ends of the PCIe adapter until it is
securely seated in the slot with
the retaining clip clicks into the locked position.
b.
Rotate the PCIe adapter retainer towards the chassis until it snaps into locked position.
