Lenze Global Drive 9300 Servo PLC Series User Manual

9300 Servo PLC
System blocks
2.1 AIF1_IO_AutomationInterface
2-5
L
ServoPLC EN 2.0
2.1.2 Outputs_AIF1
Automation interface (module number 41)
This SB is used as interface for output signals (e.g. setpoint/actual value) from attached fieldbus
modules (e. g. INTERBUS, PROFIBUS-DP).
• Theprocessimageis
– created every 10 ms.
– created in an interval task within the time set for this task.
– read at the beginning of the task and written at its end.
Tip!
Please observe the Operating Instructions for the attached fieldbus module.
Outputs_AIF1
Automation
Interface
Byte
1
Byte
2
Byte
3
Byte
4
Byte
5
Byte
6
Byte
7
Byte
8
C0858/1
16 Bit
LowWord
16 Bit
HighWord
AIF1_wDctrlStat
AIF1_nOutW1_a
16 Bit
16 Bit
C0858/2
AIF1_nOutW2__a
AIF1_bFDO0_b
AIF1_bFDO15_b
C0858/3
C0859
AIF1_nOutW3_a
AIF1_bFDO16_b
AIF1_bFDO31_b
16 Bit
C0151/4
16 binary
signals
16 Bit
C0151/4
16 binary
signals
…
…
AIF1_dnOutD1_p

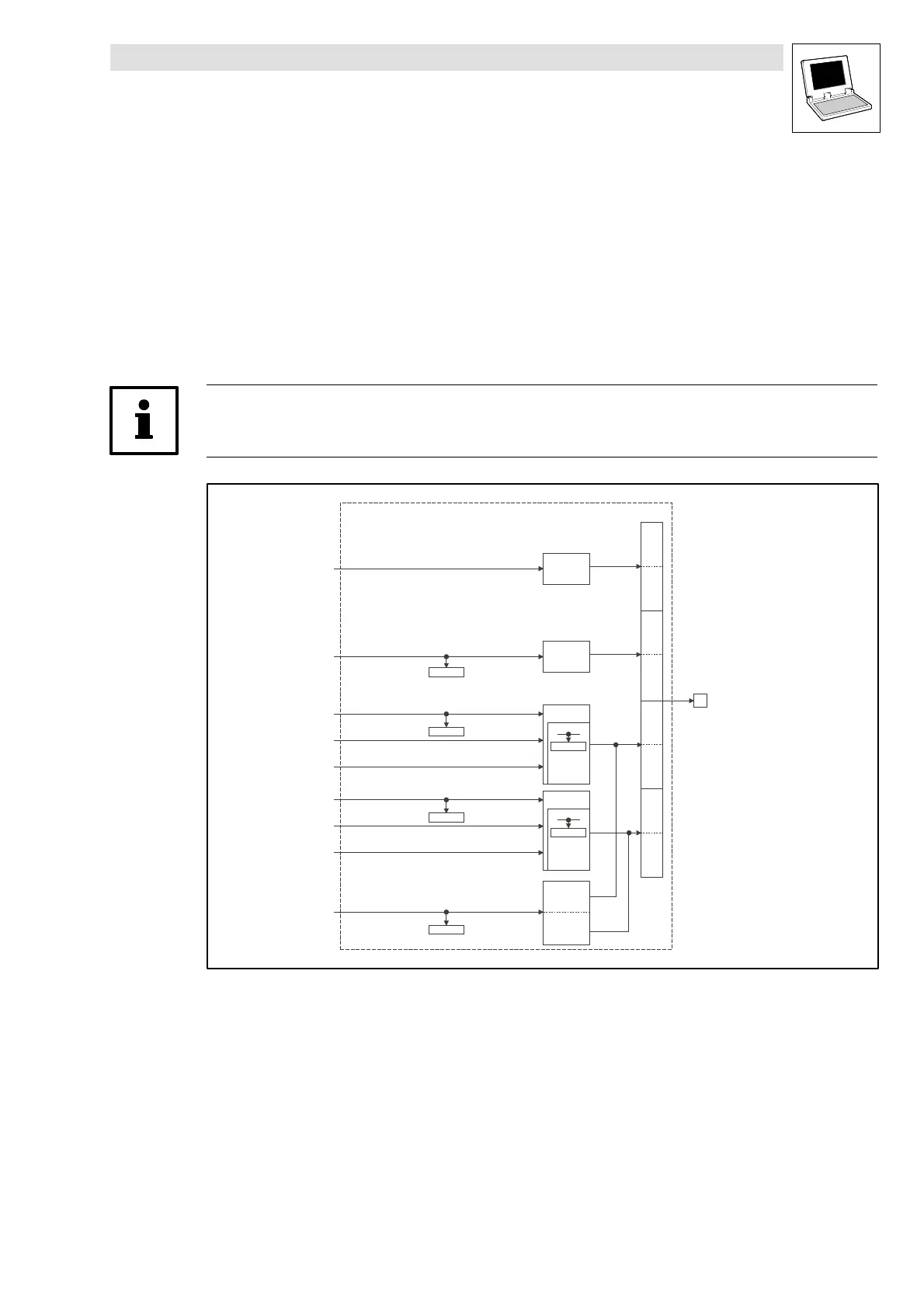

Fig. 2-2 Outputs_AIF1
