9300 Servo PLC
System blocks

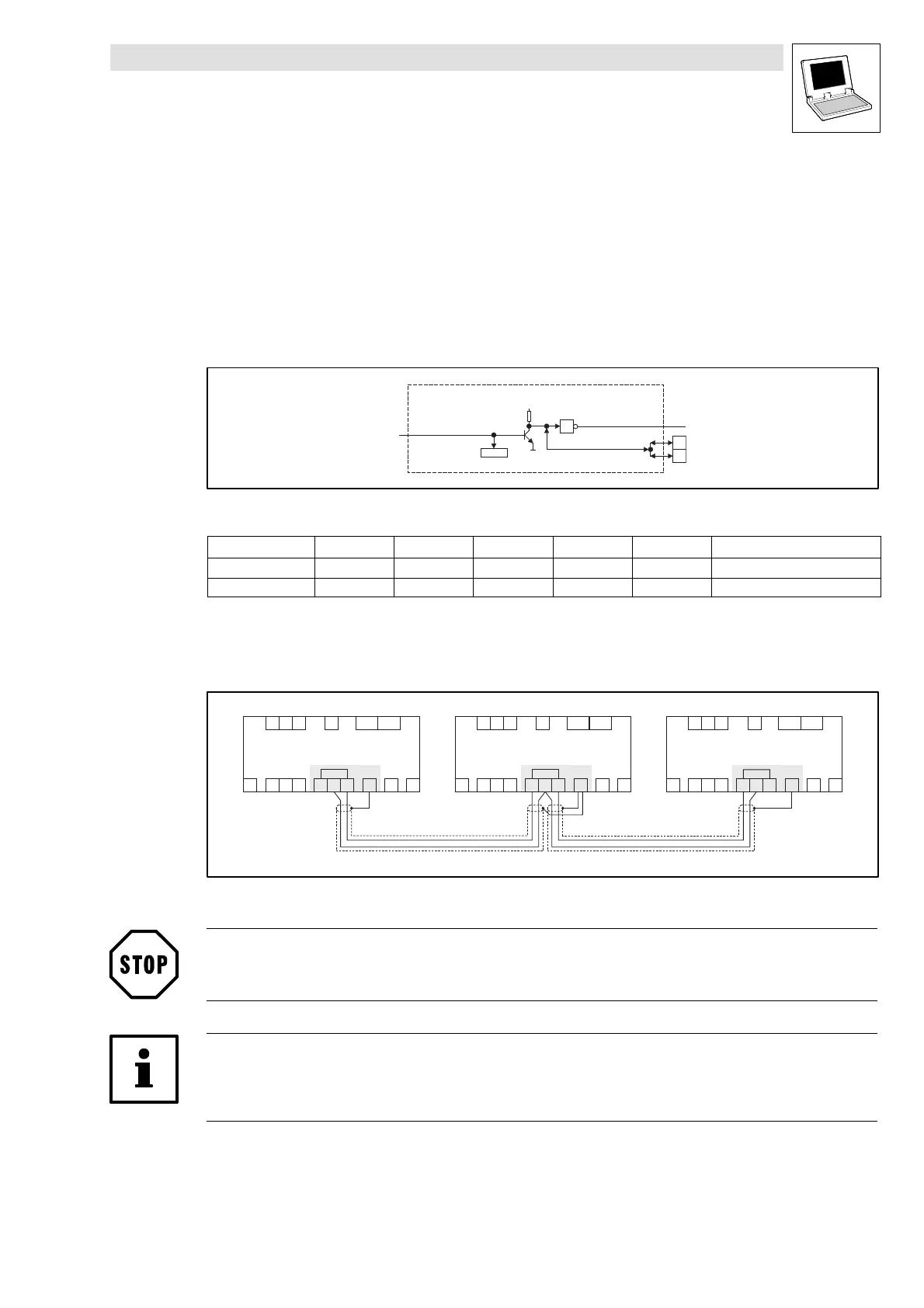

2.13 STATEBUS_IO
2-67
L
ServoPLC EN 2.0
2.13 STATEBUS_IO
(Module nummer 51)
The state bus is a bus system which has been designed for Lenze controllers/PLC.
This SB can set the state bus to LOW level and control all devices connected to the state bus as set
earlier (e.g. TRIP, QSP or controller inhibit)
The SB immediately detects when a device sets the state bus to LOW level, i.e. this control signal
can be processed by the PLC program.
STATEBUS_IO
ST
ST
1
STATE_BUS_bIn_b
C0441
STATE_BUS_bOut_b
X5
+10V
Fig. 2-27 STATEBUS_IO
VariableName
DataType SignalType Address DIS DIS format Note
STATEBUS_bOut_b Bool binary %QX51.0.4 C0441 bin LOW signal output
STATEBUS_bIn_b Bool binary %IX51.0.6 - - LOW signal detection
• Ever device connected to the state bus can set the state bus to LOW level (multi-master
operation).
• Max. 20 devices (controllers/PLCs) can be networked with the state bus.
VU W ST 39 ST PE 28 A4PE
L2L1 L3 PE +UG -UG
9300 Servo PLC / 932X / 933X
VU W ST 39 ST PE 28 A4PE
L2L1 L3 PE +UG -UG
9300 Servo PLC / 932X / 933X
VU W ST 39 ST PE 28 A4PE
L2L1 L3 PE +UG -UG
9300 Servo PLC / 932X / 933X
Fig. 2-28 Networking with state bus
Stop!
Do not apply an external voltage across terminals X5/ST!
Tip!
Further information on the state bus as well as possible applications and commissioning can be
found in the System Manual for the 9300, Project Planning, Part F.
