2.2 AIF2_IO_AutomationInterface
2-7
L
ServoPLC EN 2.0
2.2 AIF2_IO_AutomationInterface
2.2.1 Inputs_AIF2
Automation interface (module number 42)
This SB is used as interface for input signals (e. g. setpoints/actual values) from attached fieldbus
modules (e. g. INTERBUS, PROFIBUS-DP).
• Theprocessimageis
– created every 10 ms.
– created in an interval task within the time set for this task.
– read at the beginning of the task and written at its end.
Tip!
Please observe the corresponding Operating Instructions for the fieldbus module that is plugged in.
Inputs_AIF2
Automation
Interface
AIF2_bInB0_b
AIF2_bInB15_b
AIF2_nInW1_a
16 Bit
...
16 binary
signals
Byte
1
Byte
2
Byte
3
Byte
4
Byte
5
Byte
6
Byte
7
Byte
8
AIF2_bInB16_b
AIF2_bInB31_b
AIF2_nInW2_a
16 Bit
...
16 binary
signals
16 Bit
LowWord
16 Bit
HighWord
AIF2_nInW3_a
AIF2_dnInD1_p
16 Bit
16 Bit
AIF2_nInW4_a

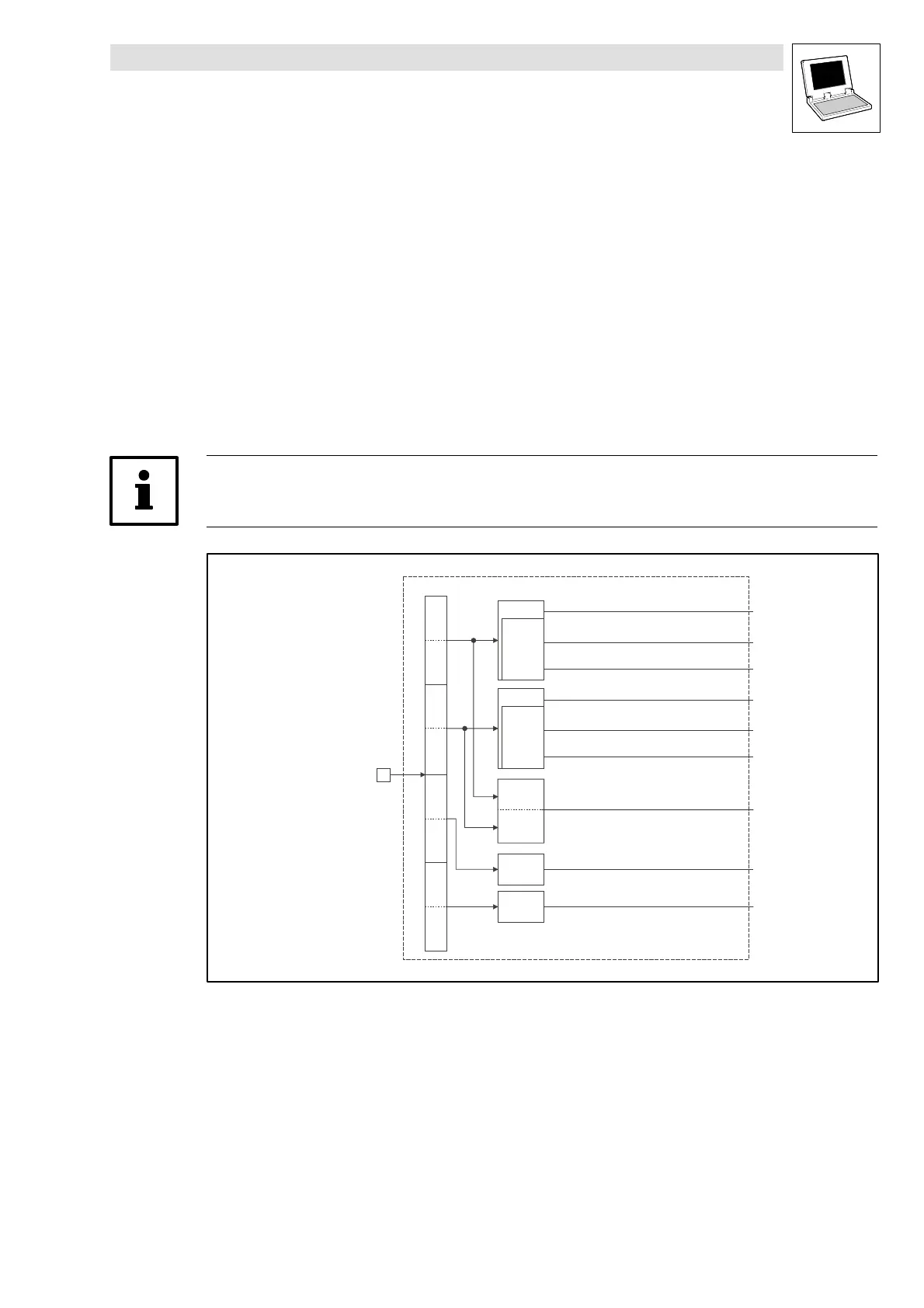

Fig. 2-3 Inputs_AIF2
