8 Process data transfer
56 Lenze · E94AYCER communication module (PROFINET®) · Communication Manual · DMS 11.0 EN · 04/2016 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3. Click the Edit PDO button.

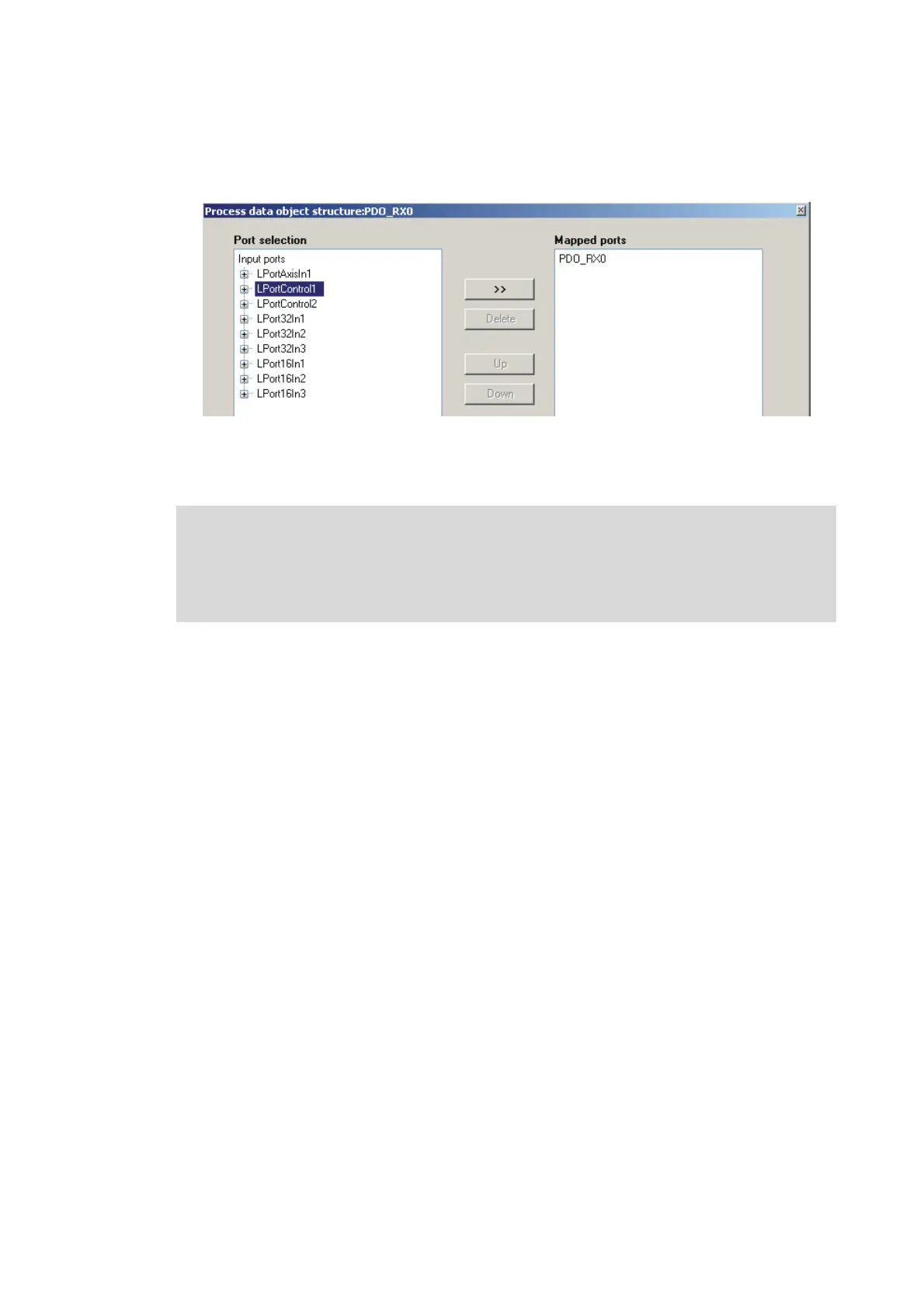

The selection window for editing the process data object is opened:
Here you can map the individual ports from the Port selection to the receive PDO
"PDO_RX0" by clicking the >> button.
The Up and Down buttons serve to shift the sequence of the ports within the PDO.
Note!
Port mapping is no configuration which can be carried out online for the Servo Drive
9400. This always requires an update of the »Engineer« project and a subsequent
download of the application.
