Lenze · E94AYCER communication module (PROFINET®) · Communication Manual · DMS 11.0 EN · 04/2016 · TD17 57
8 Process data transfer
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

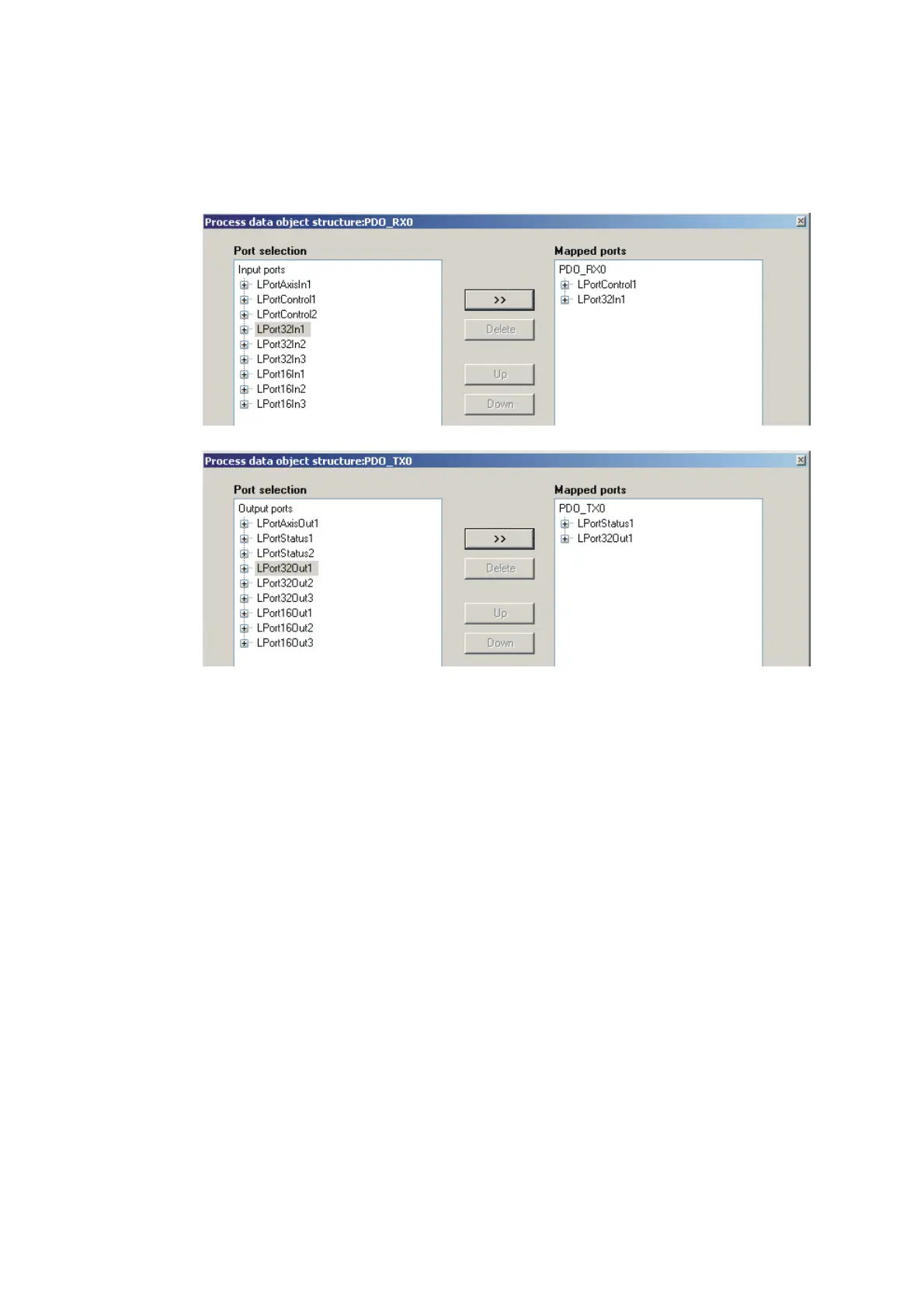

In the following example, the ports "LPortControl1" and "Lport32In1" have been mapped
into the receive PDO "PDO_RX0" and the ports "LPortStatus1" and "LPort32Out1" have been
mapped into the transmit PDO "PDO_TX0":
4. Confirm the selection by pressing OK.
5. Repeat the steps 2. to 4. for the transmit object PDO_TX0.
6. Now link the ports to the application signals in the selected technology application.
Activate the »FB Editor« via the multiplexer codes (> C03000) if this has not been done yet.
If the »FB Editor« is activated, the multiplexer codes (> C03000) are no longer available. In
this case, you must carry out the interconnection directly in the »FB Editor«.
