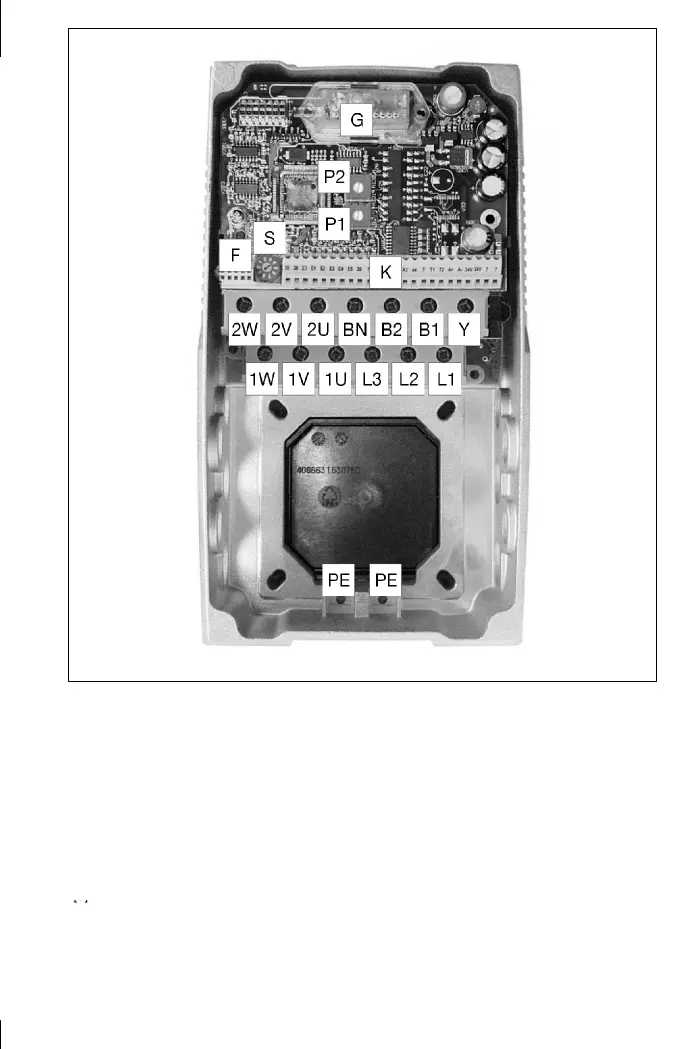

[1U], [1V], [1W], [PE]
Motor 1 connection
¶ 21
[2U], [2V], [2W], [PE]
Motor 2 connection
[L1], [L2], [L3], [PE] Mains connection
¶ 21
[B1], [B2], [BN] Connection of spring-operated brake
¶ 23
[K] Control connection
¶ 24
[S] Step switch for setting the rated motor current
¶ 31
[P1] Potentiometer for setting the motor start voltage
¶ 31
[P2] Potentiometer for setting the smooth start ramp
¶ 31
[F] Function module connection (in preparation)
[G]
Keypad connection (AIF interface)
LEDs (operating status) ¶ 52
