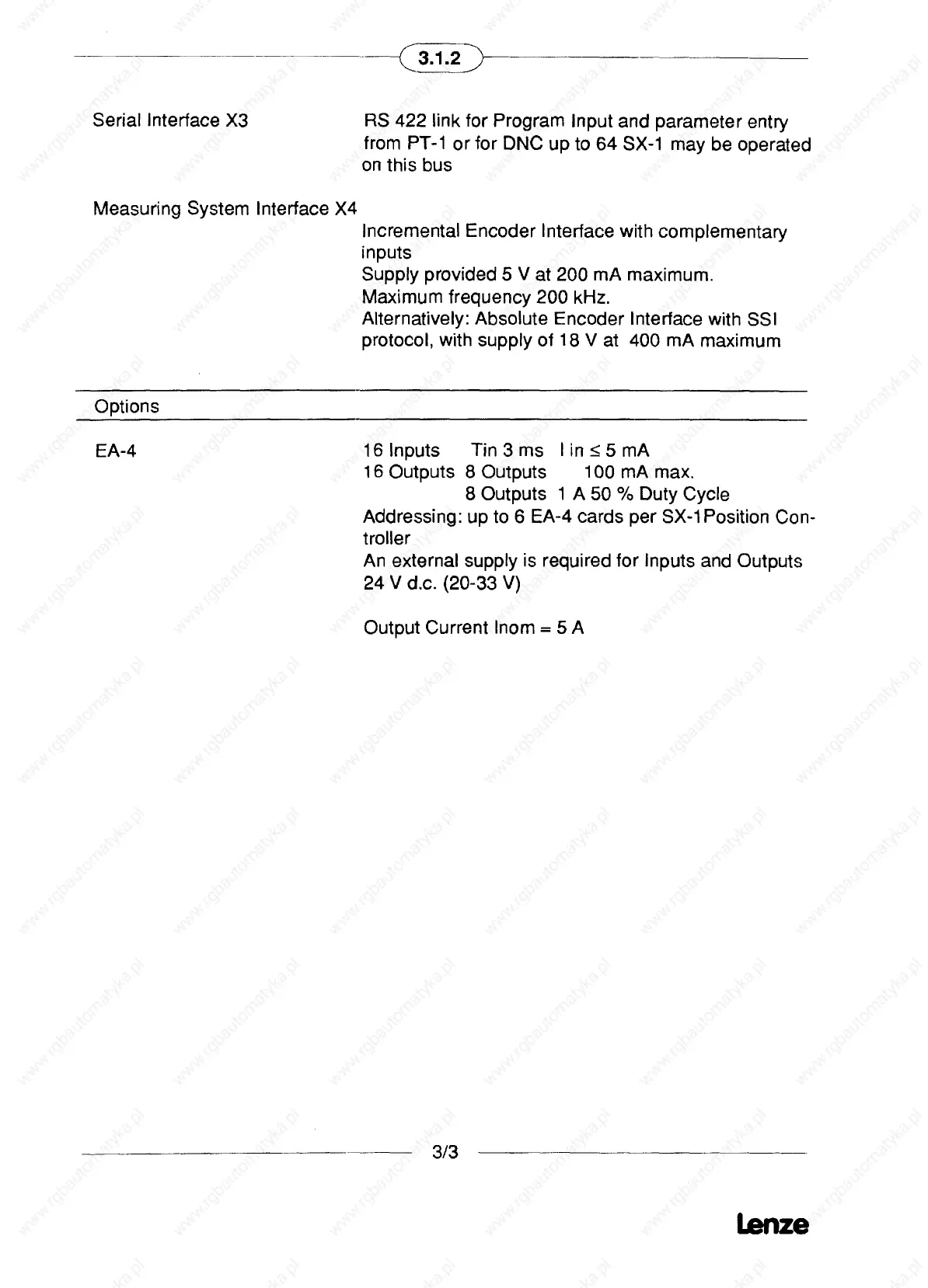

___________—__ _____- - 3.1.2
Serial Interface X3 RS 422 link for Program Input and parameter entry
from PT-1 or for DNC up to 64 SX-1 may be operated
on this bus
Measuring System Interface X4
Incremental Encoder Interface with complementary
inputs
Supply provided 5 V at 200 mA maximum.
Maximum frequency 200 kHz.
Alternatively: Absolute Encoder Interface with SSI
protocol, with supply of 18V at 400 mA maximum
Option s
EA-4 l6lnputs Tin3ms lin=5mA
16 Outputs 8 Outputs 100 mA max.
8 Outputs 1 A 50 % Duty Cycle
Addressing: up to 6 EA-4 cards per SX-1 Position Gon -
trolle r
An external supply is required for Inputs and Outputs
24 V d.c. (20-33 V)
Output Gurrent Inom = 5 A
