Lenze SX-1 - Time-out supervision

7.1.2
internal Position reached
/‚ position window
( r~1t~ Ä
Set point
1
output
Time out konstant
ca. 1 sec.

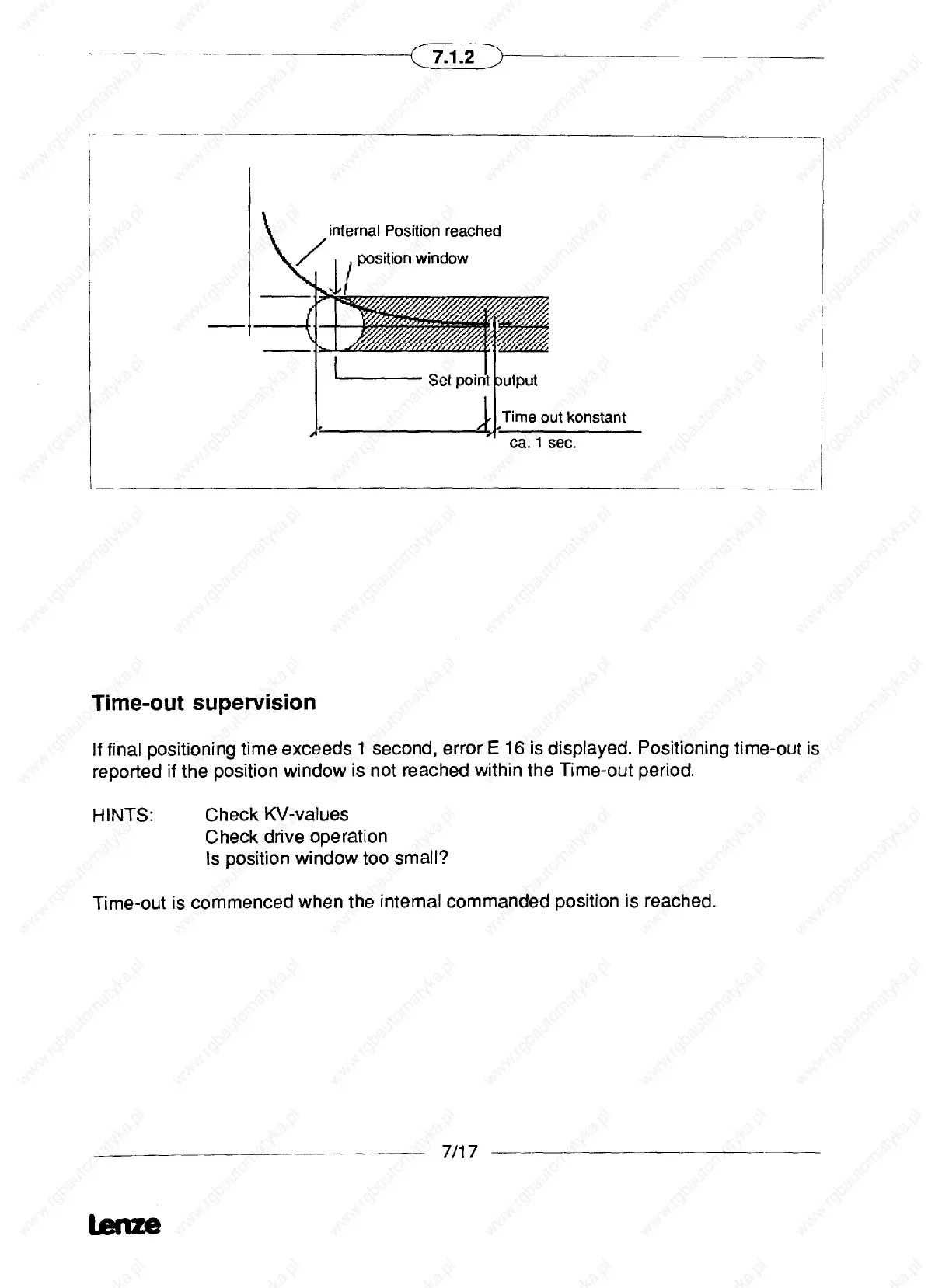

Time-out supervision
If tinal positioning time exceeds 1 second, error E 16 is displayed. Positioning time-out is
reported if the position window is not reached within the Time-out period.
HINTS: Check KV-values
Check drive operation
Is position window too small?
Time-out is commenced when the internal commanded position is reached.
