Lenze SX-1 - Definition of variables

7.1.2
shortest
360
route:
clockwise
90
snortest
route:
anti-
1000 clockwise

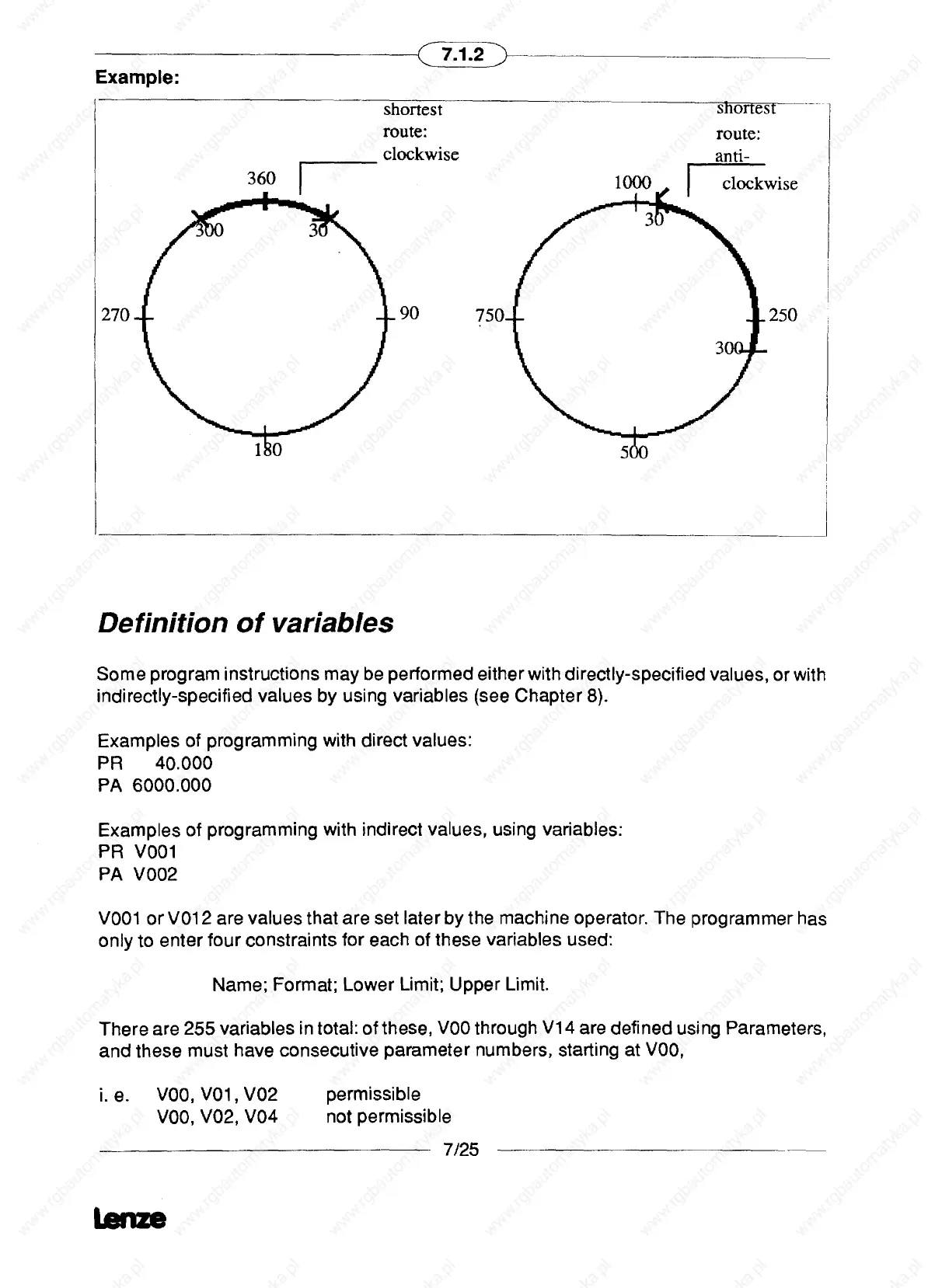

Definition of variables
Some program instructions may be performed either with directly-specified values, or with
indirectly-specified values by using variables (see Chapter 8).
Examples of programming with direct values:
PR 40.000
PA 6000.000
Examples of programming with indirect values, using variables:
PR VOO1
PA V002
VOOl or VOl 2 are values that are set later by the machine operator. The programmer has
only 10 enter four constraints for each ot these variables used:
Name; Format; Lower Limit; Upper Limit.
There are 255 variables in total: ofthese, VOO through Vl 4 are defined using Parameters,
and these must have consecutive parameter numbers, starting at VOO,
i.e. VOO,VO1,V02
VOO, V02, V04
permissible
not permissible
7/25
Example:
270
