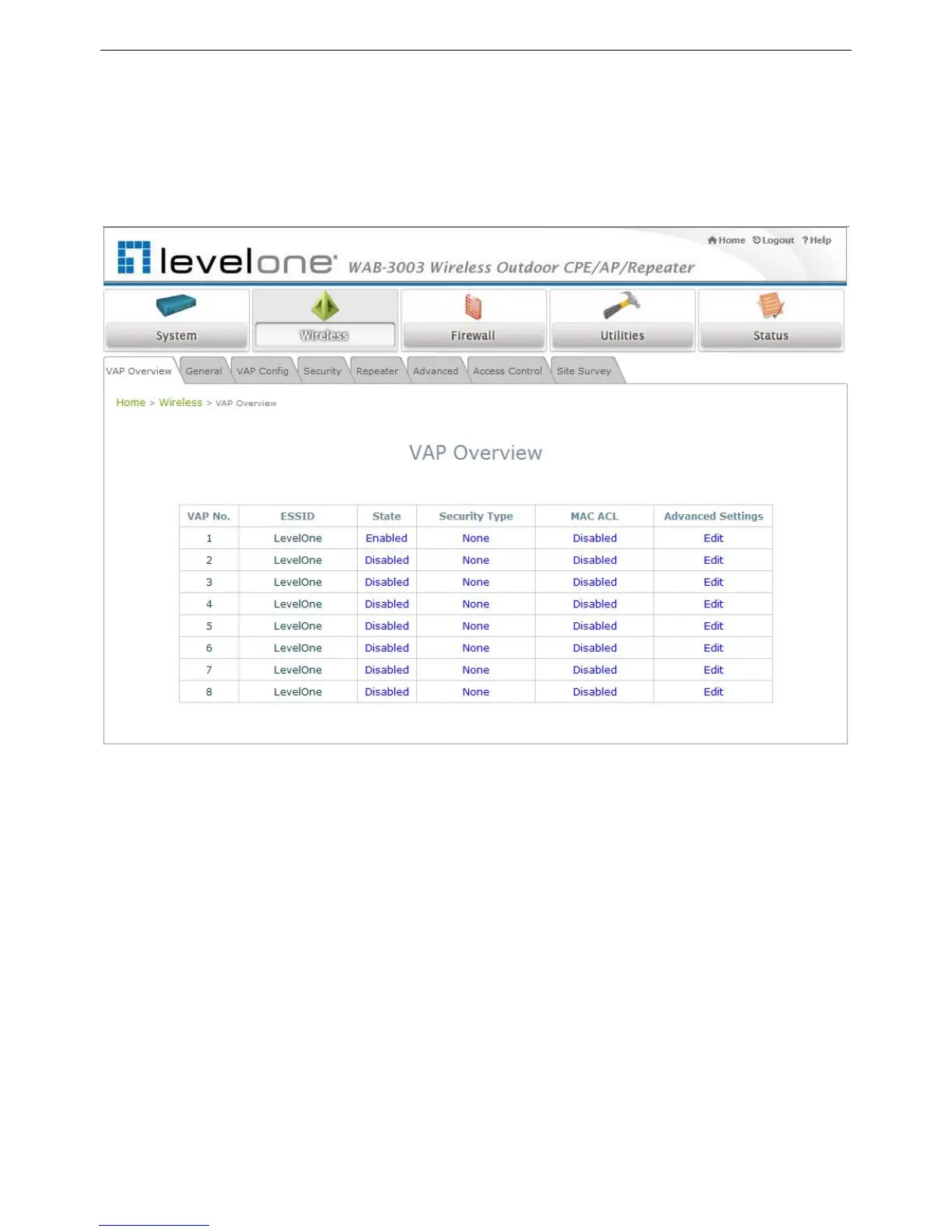

4.2.1 Virtual AP Overview
An overall status is collected in this page, including Enable/Disable State, Security Type, MAC ACL
state, and Advanced Settings. The system has 8 VAPs; each has its own settings. In this table,
please click on the hyperlink for further configuration of each VAP respectively.
 State: The hyperlink showing Enable or Disable connects to the screen of VAP Configuration.
 Security Type: The hyperlink showing security type connects to the screen of Security
Settings.
 MAC ACL: The hyperlink showing Allow or Disable connects to the screen of Access Control
Settings.
 Advanced Settings: The hyperlink of advanced settings connects to the screen of Advanced
Wireless Settings.
