4.2.8 Site Survey
The system can scan and display all surrounding available access points (APs) when Universal
Repeater is enabled. Site Survey is a useful tool to provide information about the surrounding
wireless environment; available APs are shown with their respective SSID, MAC Address, Channel,
Rate setting, Signal reading and Security type. The administrator can click Setup or Connect to
configure the wireless connection for Universal Repeater according to the mentioned readings.

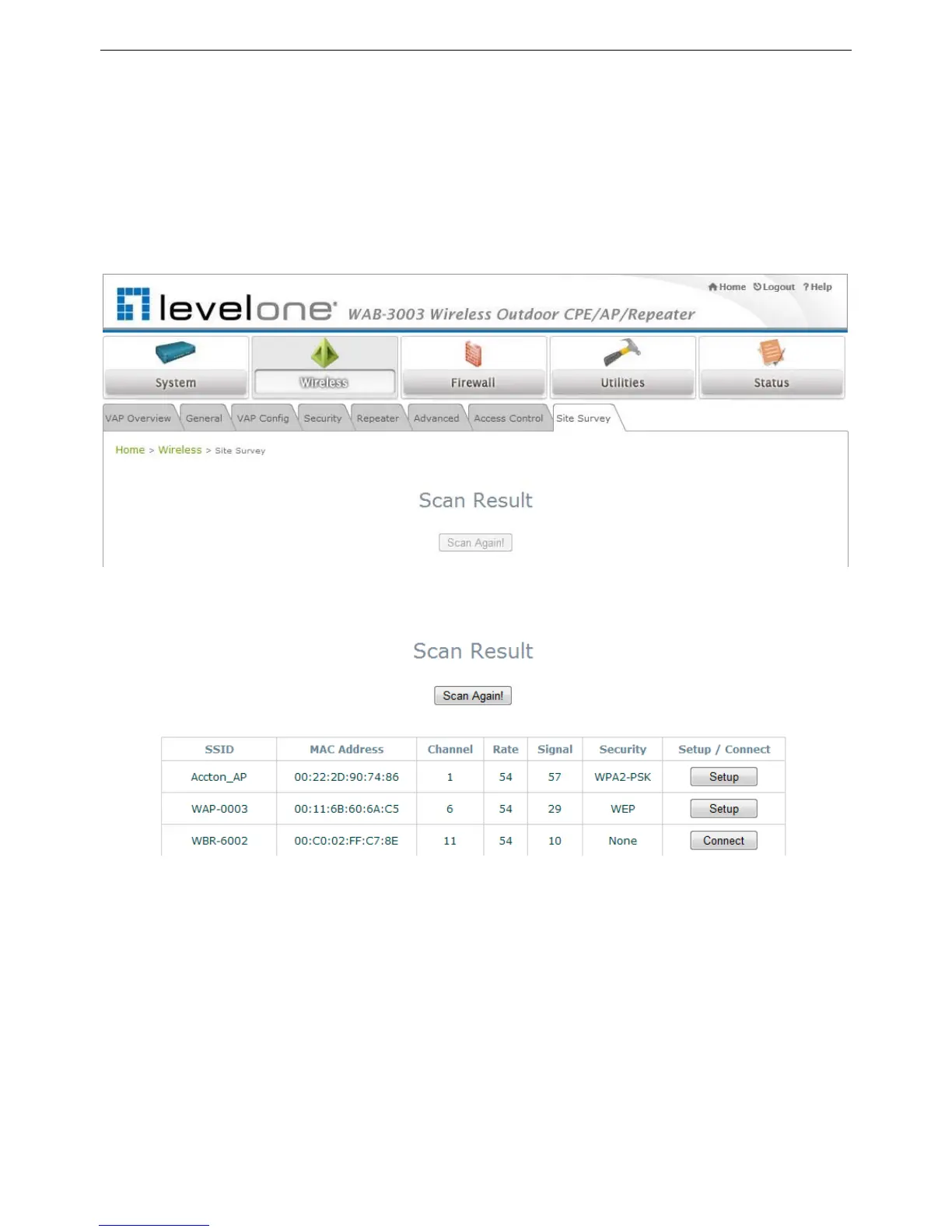

Figure 4-2-8-1: Site Survey- when repeater function is disabled.
Figure 4-2-8-2: Site Survey- when repeater function is enabled (example only)
 SSID: The SSID (Service Set ID) of the AP found in the system’s coverage area.
 MAC Address: The MAC address of the respective AP.
 Channel: The channel number currently used by the respective AP or repeater.
 Rate: The transmitting rate of the respective AP.
 Signal: The signal strength of the respective AP.
 Security: The encryption type used by the respective AP
