User’s Manual
WAB-3003 108M 11g Outdoor PoE CPE/ AP/ Bridge
72
4.5.3. Repeater Information
The administrator can review detailed information of the repeater function on this page. Information
of repeater’s status, mode and encryption is provided.
 WDS Link Status: The table will be displayed when WDS mode is selected. For more
information on the repeater type, please refer to Section 4.2.5 Repeater Settings.
 Status: The status of the repeater function either Enabled or Disabled.
 MAC Address: The MAC Address of the WDS peer.
 RSSI: Received Signal Strength Indication, a measurement of received radio signal over
WDS link.
 Tx Rate: The transmit rate of the Repeater.
 Tx Count: The accumulative number of transmission counts.
 Tx Error: The accumulative number of transmission errors.
 Encryption: The encryption type used: None, WEP, or WPA-PSK.

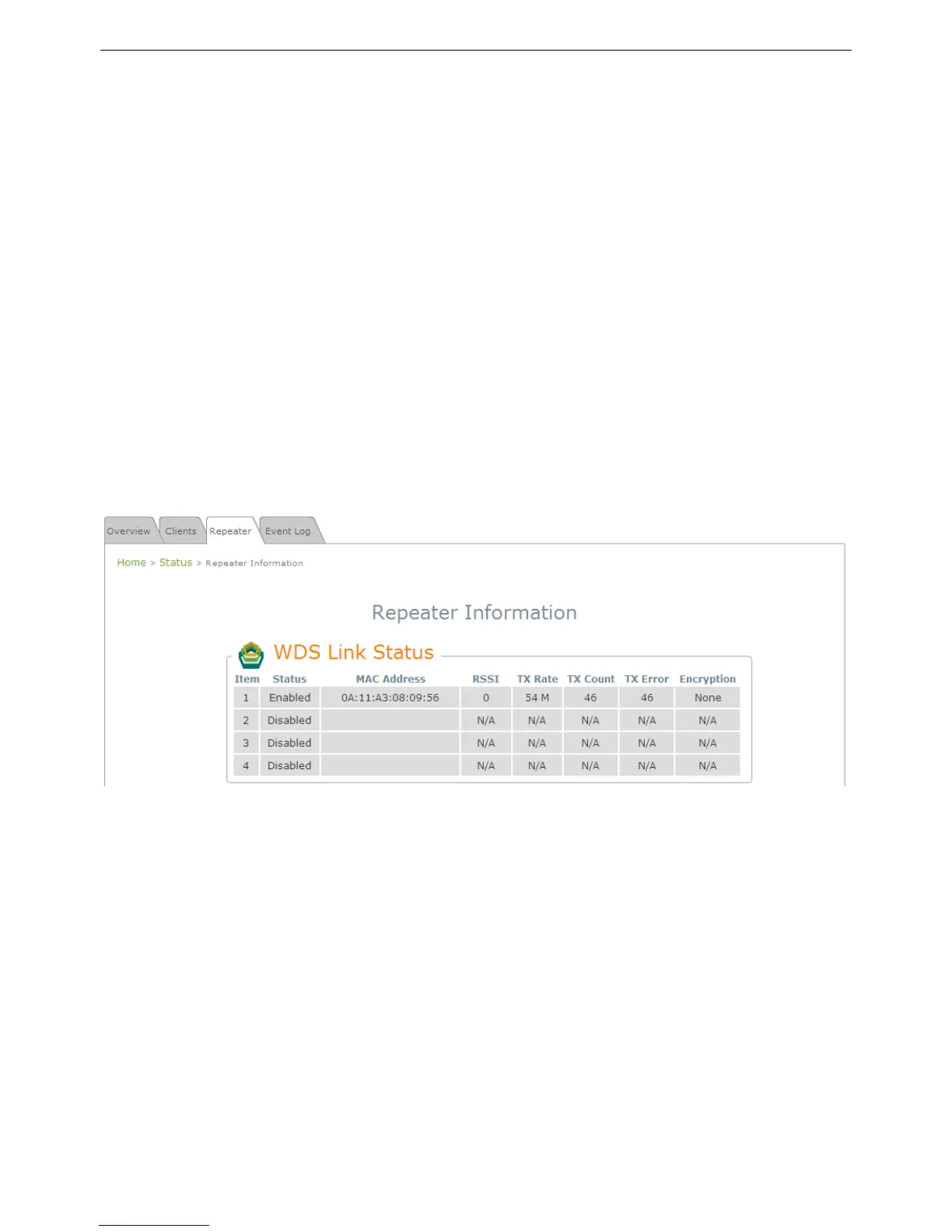

Fig. 4.5.3-1 WDS
