5.2.4 Site Survey
The system can scan and display all surrounding available access points (APs). The administrator
can then select an AP to be associated with the system on this page.
Site Survey is a useful tool to provide information about the surrounding wireless environment;
available APs are shown with their respective SSID, MAC Address, Channel, Rate setting, Signal
reading and Security type. The administrator can click Setup or Connect to configure the wireless
connection according to the mentioned readings.

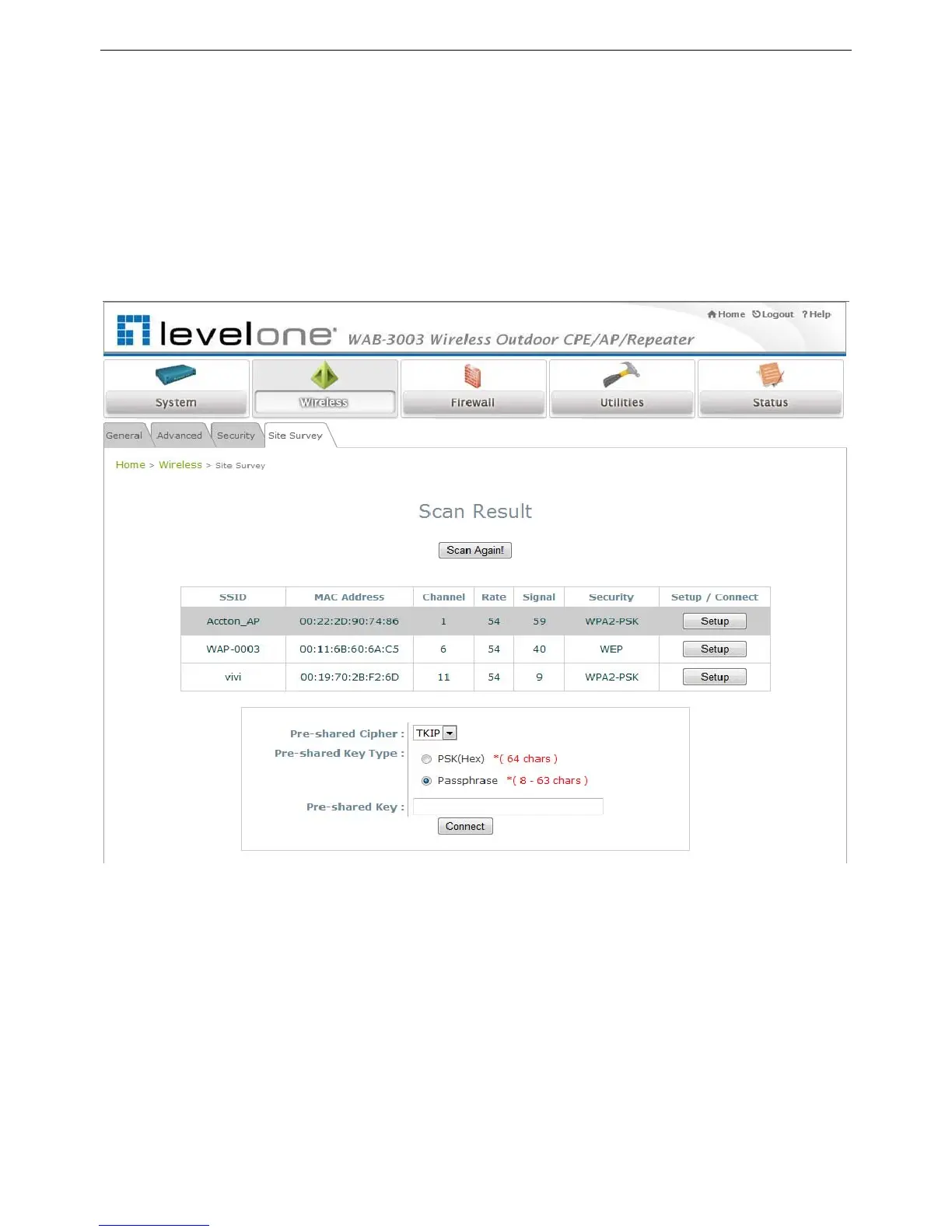

Figure 5-2-4-1: AP Scan Result (example only)
 SSID: The SSID (Service Set ID) of the AP found in the system’s coverage area.
 MAC Address: The MAC address of the respective AP.
 Channel: The channel number currently used by the respective AP.
 Rate: The transmitting rate of the respective AP.
 Signal: The signal strength of the respective AP.
 Security: The encryption type used by the respective AP.
