LevelOne WAB-3003 - System Settings (CPE Mode)

User’s Manual
WAB-3003 108M 11g Outdoor PoE CPE/ AP/ Bridge
73
 Uni

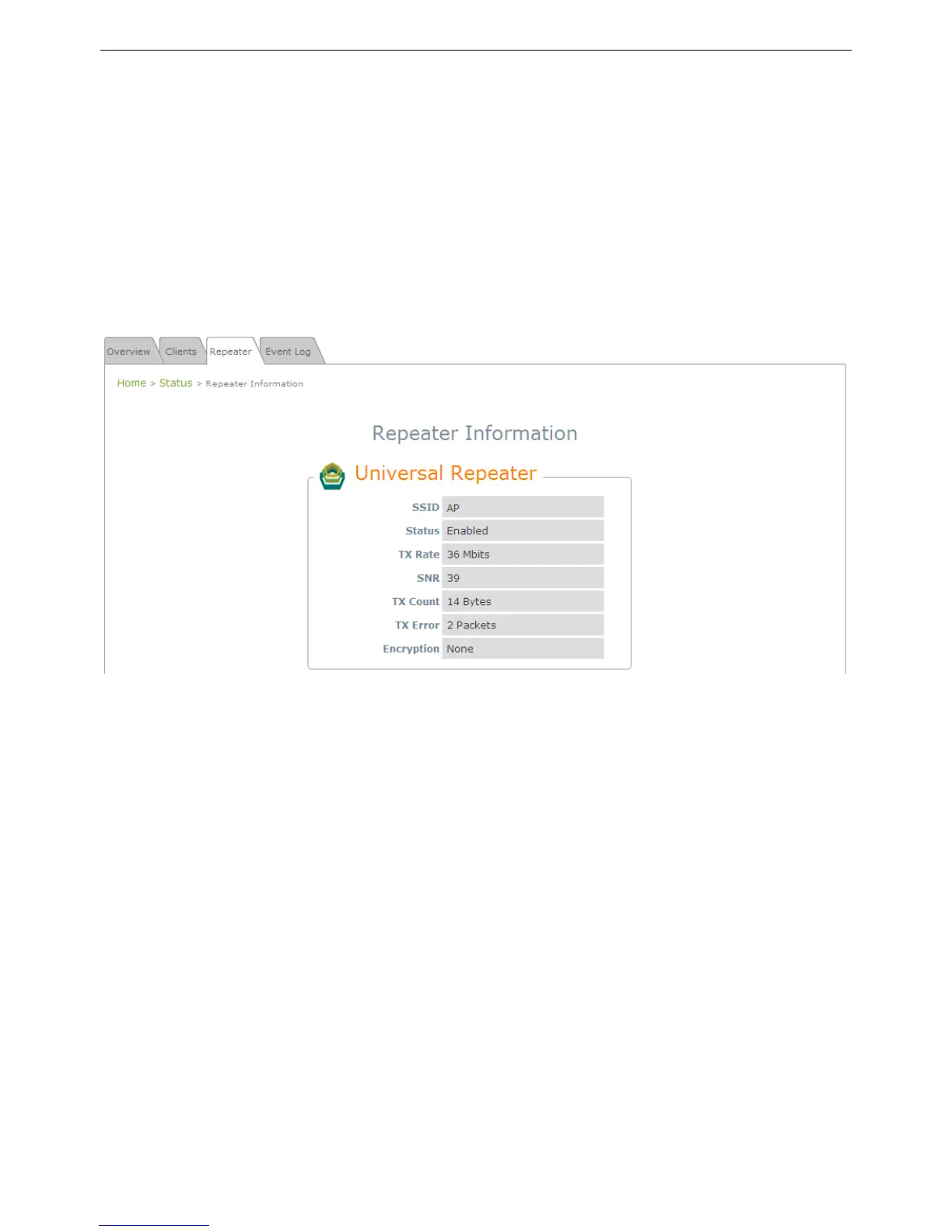

versal Repeater: The table will be displayed when Universal Repeater mode is selected. For
more information on the repeater type, please refer to Section 4.2.5 Repeater Settings.
 SSID: SSID of the upper-bound AP to be associated with.
 Tx Rate: The transmit rate of the Repeater.
 SNR: The SNR (Signal to Noise Ratio) indicates the relative signal strength between the
upper-bound AP and the system.
 Tx Count: The accumulative number of transmission counts.
 Tx Error: The accumulative number of transmission errors.
 Encryption: The encryption type used: None, WEP, or WPA-PSK.
Fig 4.5.3-2 Universal Repeater
