User’s Manual
WAB-3003 108M 11g Outdoor PoE CPE/ AP/ Bridge
42

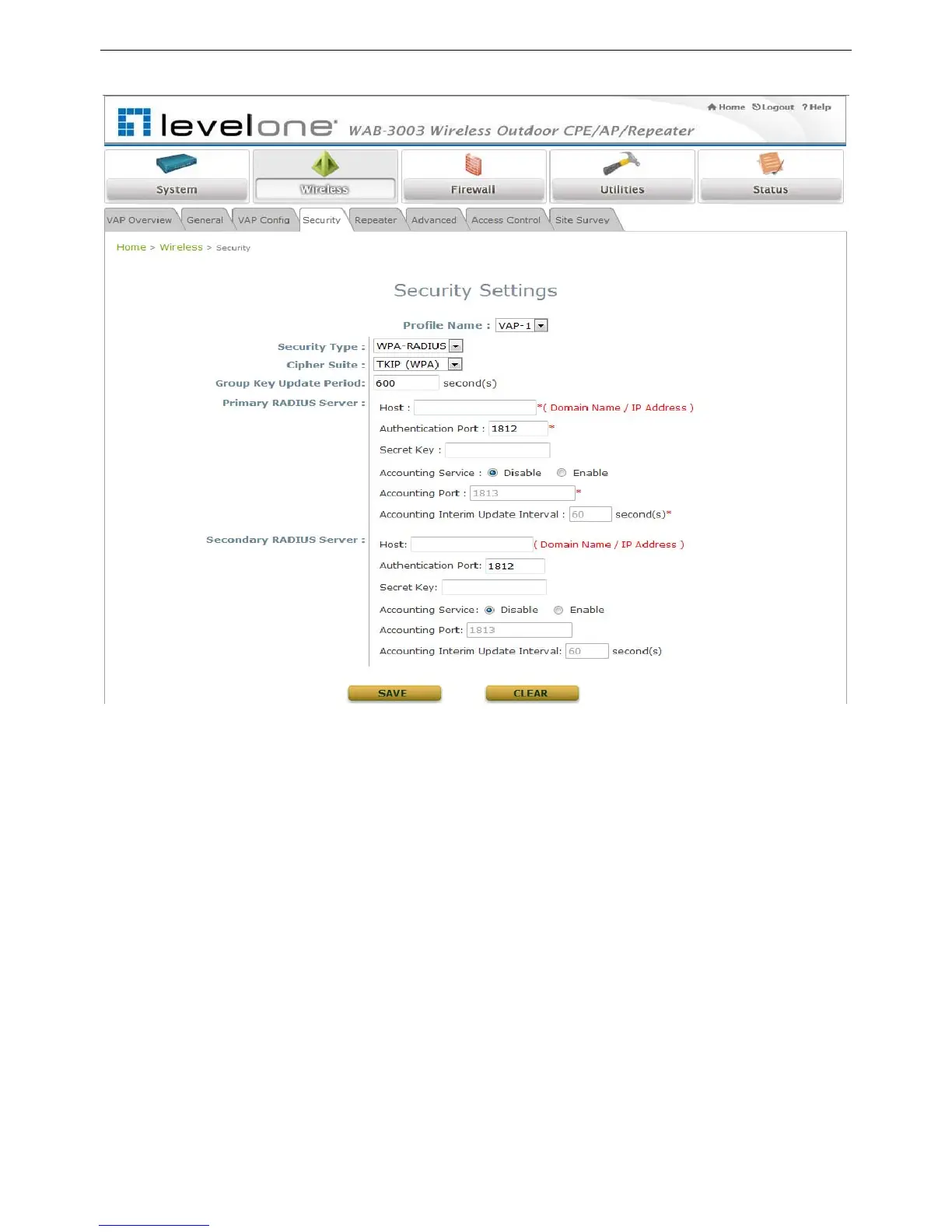

WPA-RADIU
S: Authenticate users by RADIUS and provide WPA data encryption.
WPA Settings:
o Cipher Suite: Select an encryption method from TKIP (WPA), AES (WPA),
TKIP(WAP2), AES (WAP2), or Mixed.
o Group Key Update Period: The time interval for the Group Key to be renewed; the
time unit is in second.
Primary RADIUS Server Settings:
o Host: Enter the IP address or domain name of the RADIUS server.
o Authentication Port: The port number used by the RADIUS server. Specify a port
number or use the default, 1812.
o Secret Key: The secret key for the system to communicate with the RADIUS server.
o Accounting Service: Enable or disable the accounting service.
o Accounting Port: The port number used by the RADIUS server. Specify a port
number or use the default, 1813.
o Accounting Interim Update Interval: The time interval for the accounting to be
updated; the time unit is in second.
