Meters
The G2 has a built-in meter array that allows you to simultaneously view guitar
input level, main output levels as well as the levels of all individual effects blocks,
except Gain.
The meters are displayed in fixed order: Input, Effect 1, Effect 2, Chorus, Delay,
Reverb, EQ, Output.
Each block’s output level is shown with a 7-segment meter. Overload is indicated
by displaying a plus sign on the top right side of the individual meter.
Use the meter display to check levels throughout the effect chain, or to track
down overload in an individual effect.
I 1 2 C D R E O
❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚

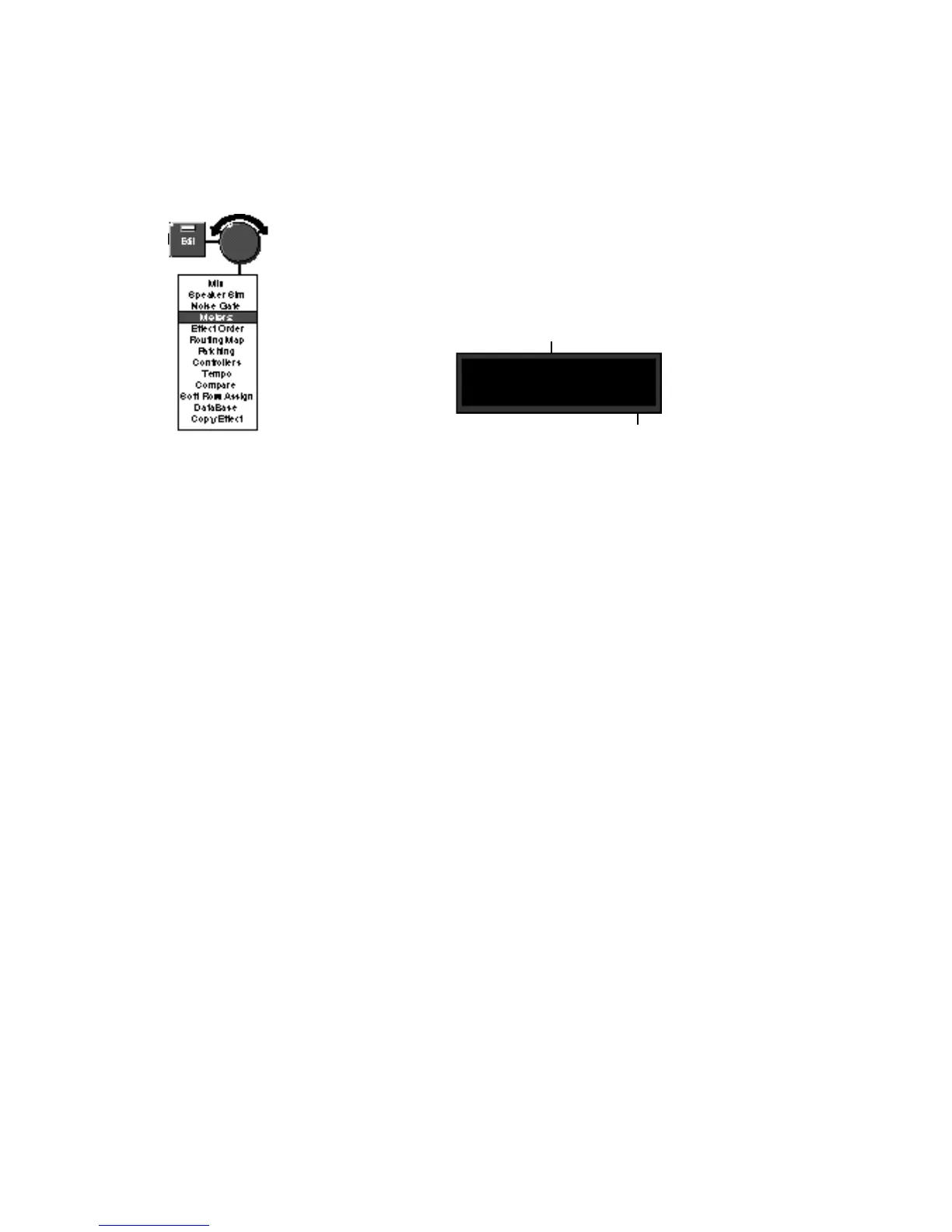

Effect blocks are indicated by their
number or inital letter.
Each effect block has a 7-segment with an
overload indicator (A + at the top of the
meter block).
+
