5-1
System Controls
5
System Controls

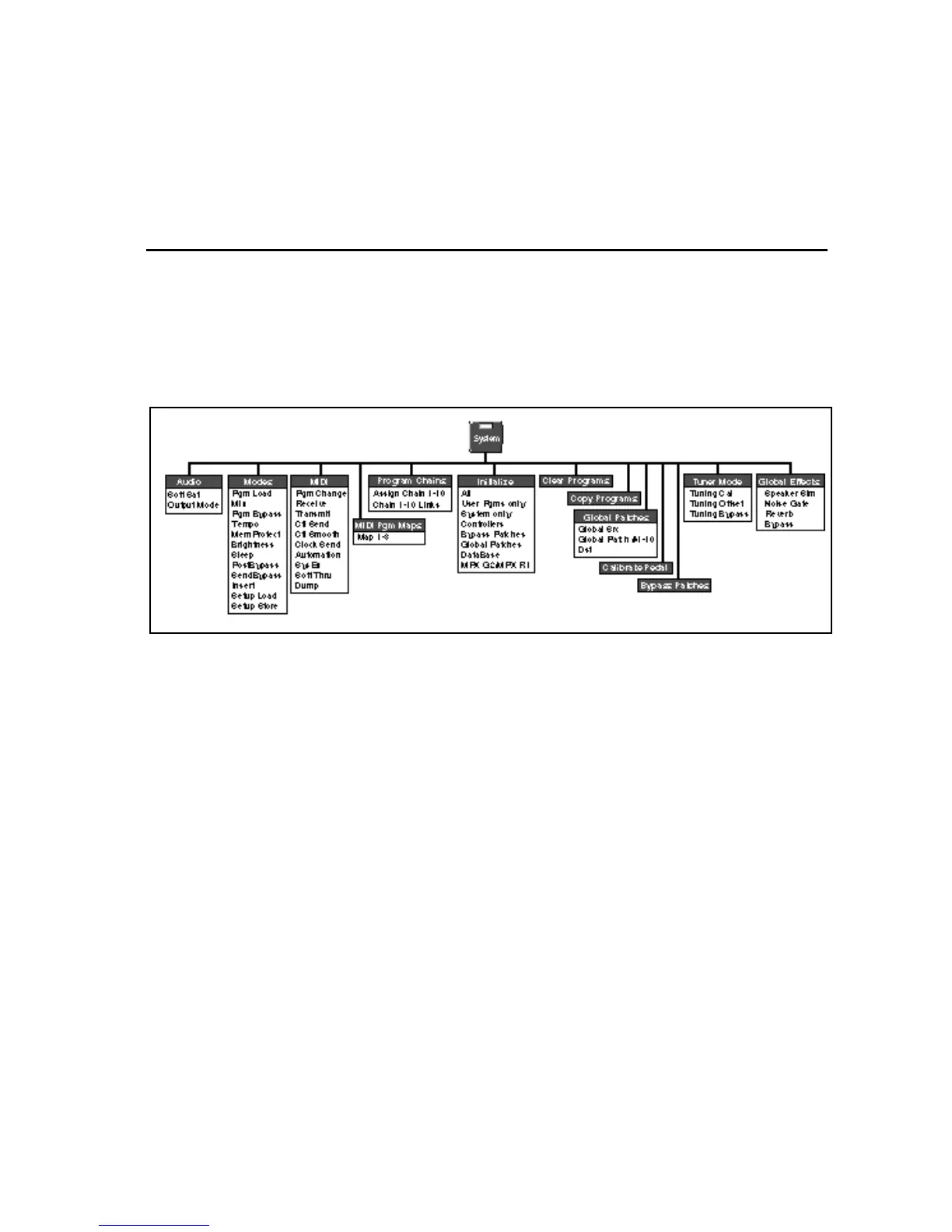

The System menus shown below provide access to all of the controls which
affect overall operation of the MPX G2, such as Bypass state, MIDI transmit and
receive channels, as well as some unique options that make the MPX G2 adapt
to your personal requirements. These controls are each explained in detail in this
chapter, in the order in which they are displayed in System mode.
The System Menus
Press System to enter the System menu, and use the knob to select the
particular menu you want. With the menu of your choice displayed (Audio,
Modes, etc.), use the < and > buttons to enter the submenu and select
parameters, and the knob to adjust parameter values. When you're finished
making adjustments within any menu, press System to return to the main
System menu, or press the < and > buttons to select another control from the
same menu.
The Audio menu allows you to change the settings of controls which affect the
MPX G2 audio output characteristics.
The Soft Sat control puts an analog soft-knee limiter in front of the input of the
MPX G2 A/D converters. This control essentially allows you to trade the
harshness of digital distortion for a softer, analog version. The harshness
associated with A/D overload at signal levels above -3dBfs is reduced. In-
creased analog distortion will occur in the range of -3dBfs to 0dBfs. The available
settings are On and Off.
In Output Mode, select Stereo or Mono as the output mode of the MPX G2.
Audio Controls
Soft Sat
Output Mode
