LexiconMPX G2 User Guide
1-2

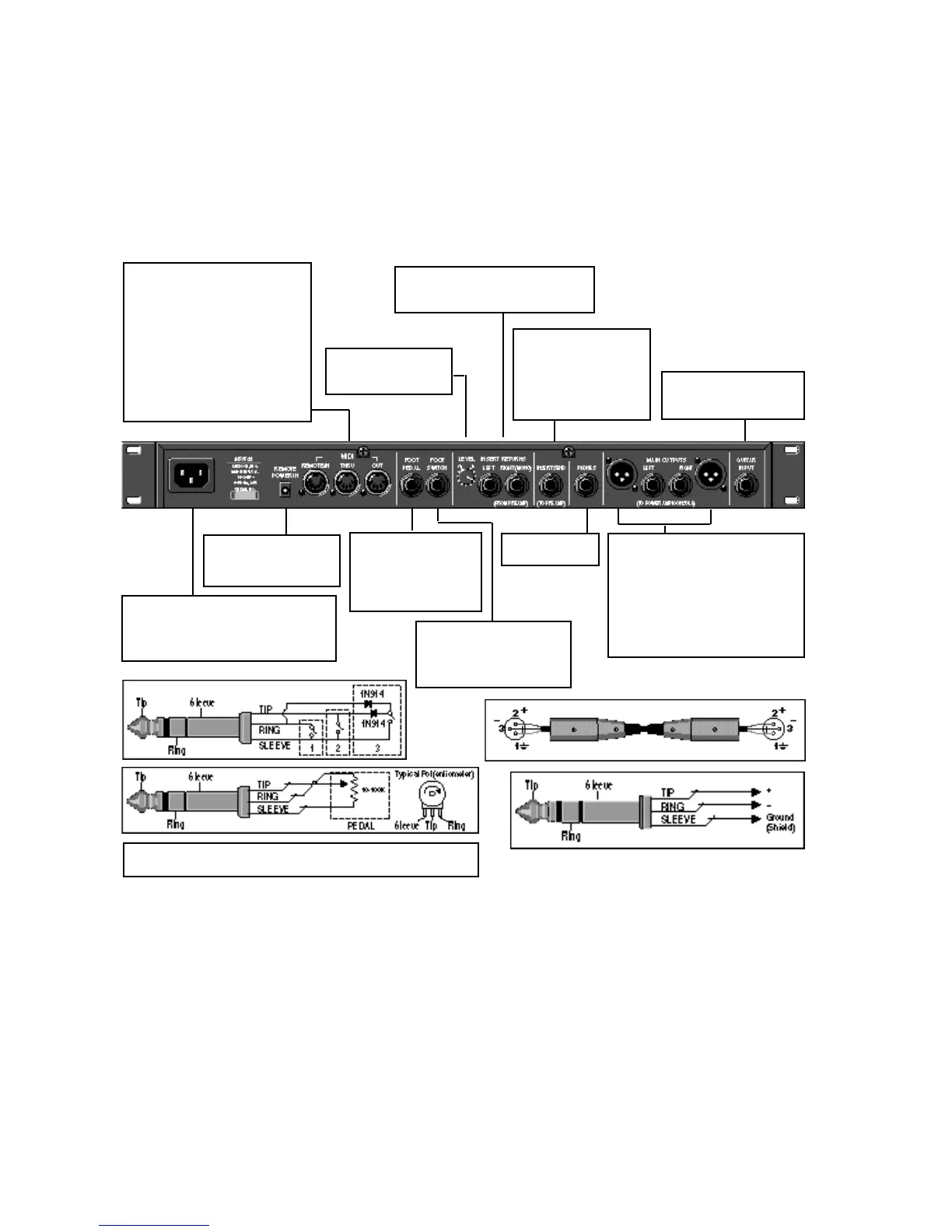

The Rear Panel
AC Power
Standard 3-pin IEC power connector.
100-240V, 50-60Hz automatic switching
to correct voltage range.
MIDI
IN
7-pin DIN connector for MIDI IN or
powered bidirectional MIDI remote.
THRU
5-pin DIN connector passes any
MIDI data received without change.
OUT
5-pin DIN connector transmits MIDI
data to other equipment.
Foot Switch
1/4" Tip/Ring/Sleeve phone
jack for three independent
footswitches.
Insert Returns Level
Controls the input level
of the Insert Returns.
Guitar Input
Guitar input (overridden by
front panel input.)
Foot Pedal
1/4" Tip/Ring/Sleeve
phone jack provided for
footpedal with 10kΩ to
100kΩ impedance.
Main Outputs (to Power Amp or
Console)
XLR and 1/4" TRS: Output impedance
is 600Ω, each side, balanced, and
levels up to +18dBu maximum full
scale.
Unbalanced output levels up to
+21dBu into 100kΩ.
REMOTE POWER IN
2.5mm connector for 9
VAC MIDI remote power.
For control voltage input, use a 1/4" stereo plug with Sleeve connected
to ground, Tip connected to the control voltage, and Ring unconnected.
Insert Returns (from Preamp)
When connected, external audio will
be inserted after the Gain block.
Insert Send (to Preamp)
When the Insert Returns
are connected, all effects
before (and including) the
Gain block will be passed
to this connector.
Phones
Headphone input.
