Lexmark 7014-636 - Duplex Removal

Repair information 4-19
7014-xxx
Duplex removal
1. Remove the right side cover. See “Right side cover removal” on page 4-77.
2. Remove the LVPS/HVPS. See “LVPS/HVPS removal” on page 4-37.

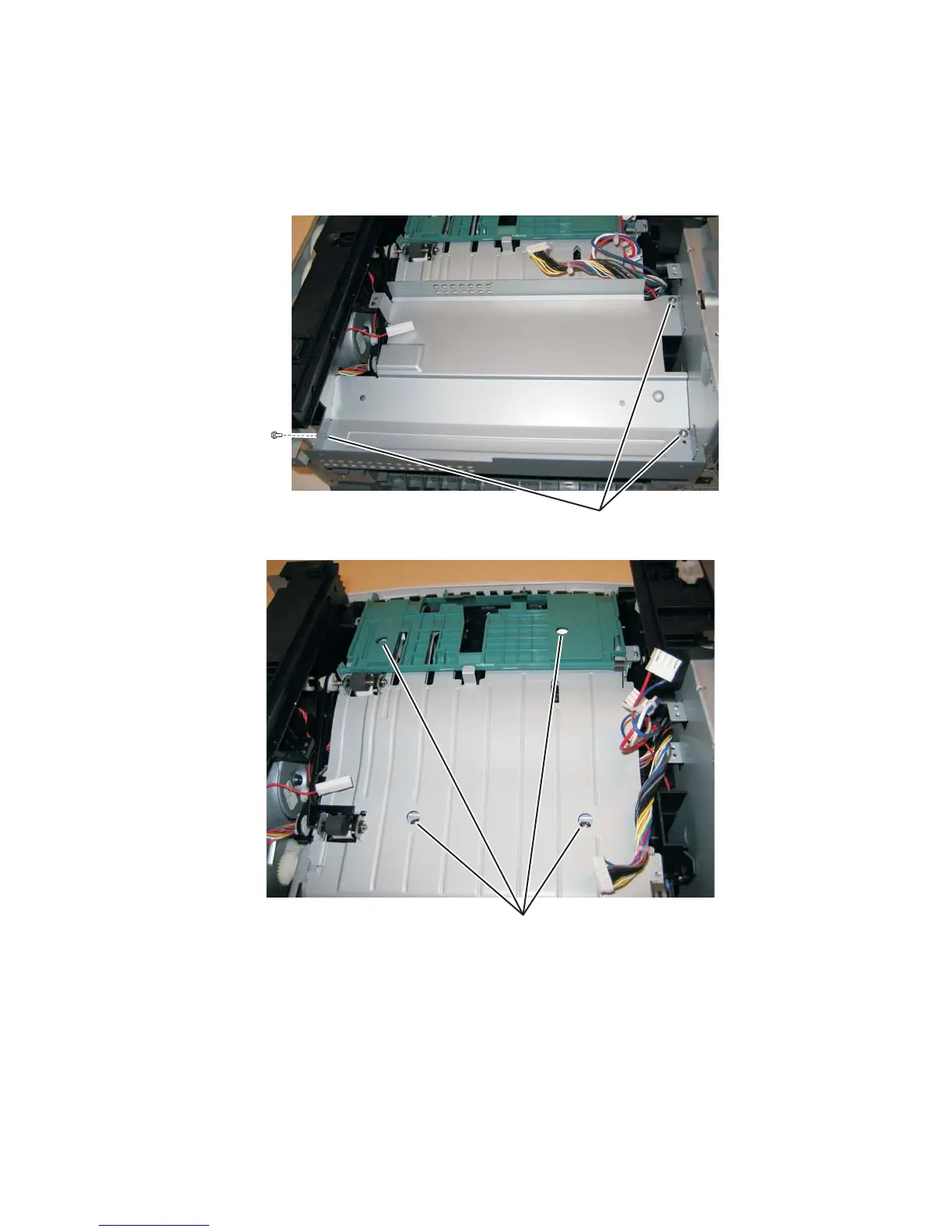

3. Remove the three screws (A) from the shield.
4. Remove the four screws (B) from the duplex.
A
B
