5. Locations and connections
Locations

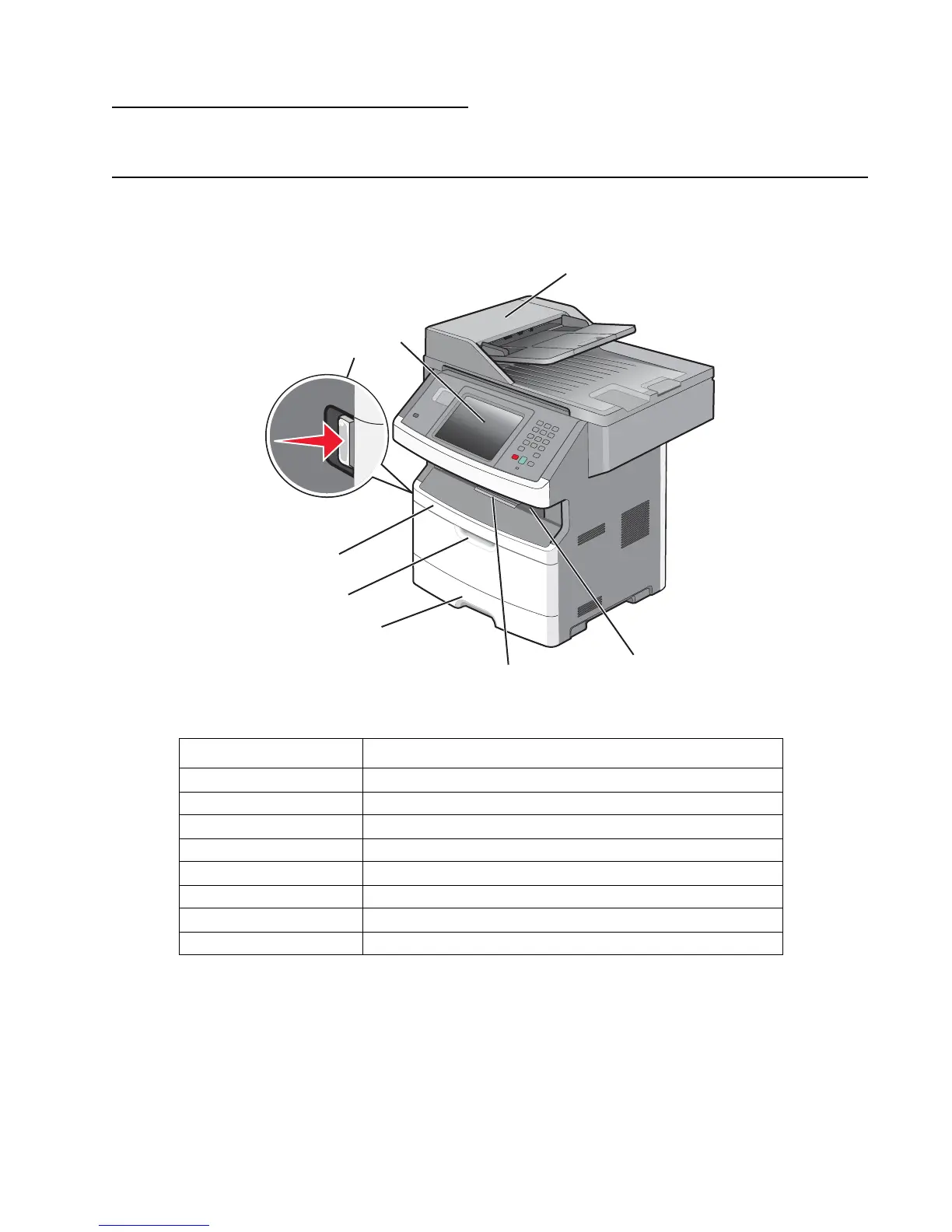

Front view
Callout number Item name
1 Front door release button
2 E-Task display / Operator panel
3 ADF unit
4 Output bin / cave
5 Output bin extension
6 Standard input tray
7 MFP input tray
8 Front cover access
