4-86
7014-xxx
Flatbed removal
1. Remove the left side cover. See “Left side cover removal” on page 4-33.
2. Remove the left scanner cover. See “Left scanner cover removal” on page 4-100.
3. Remove the right scanner cover. See “Right scanner cover removal” on page 4-101.
4. Remove the right side cover. See “Right side cover removal” on page 4-77.
5. Remove the ADF unit. See “ADF unit removal” on page 4-85.
6. Raise the flatbed unit to the up position.
7. Remove the controller board shield. See “Controller board shield” on page 4-11.
8. Disconnect FBmtr from connector J28, FB home from connector J13, CCD from connector J30, and
Plegnth sensor cables from connector J12 on the controller board.

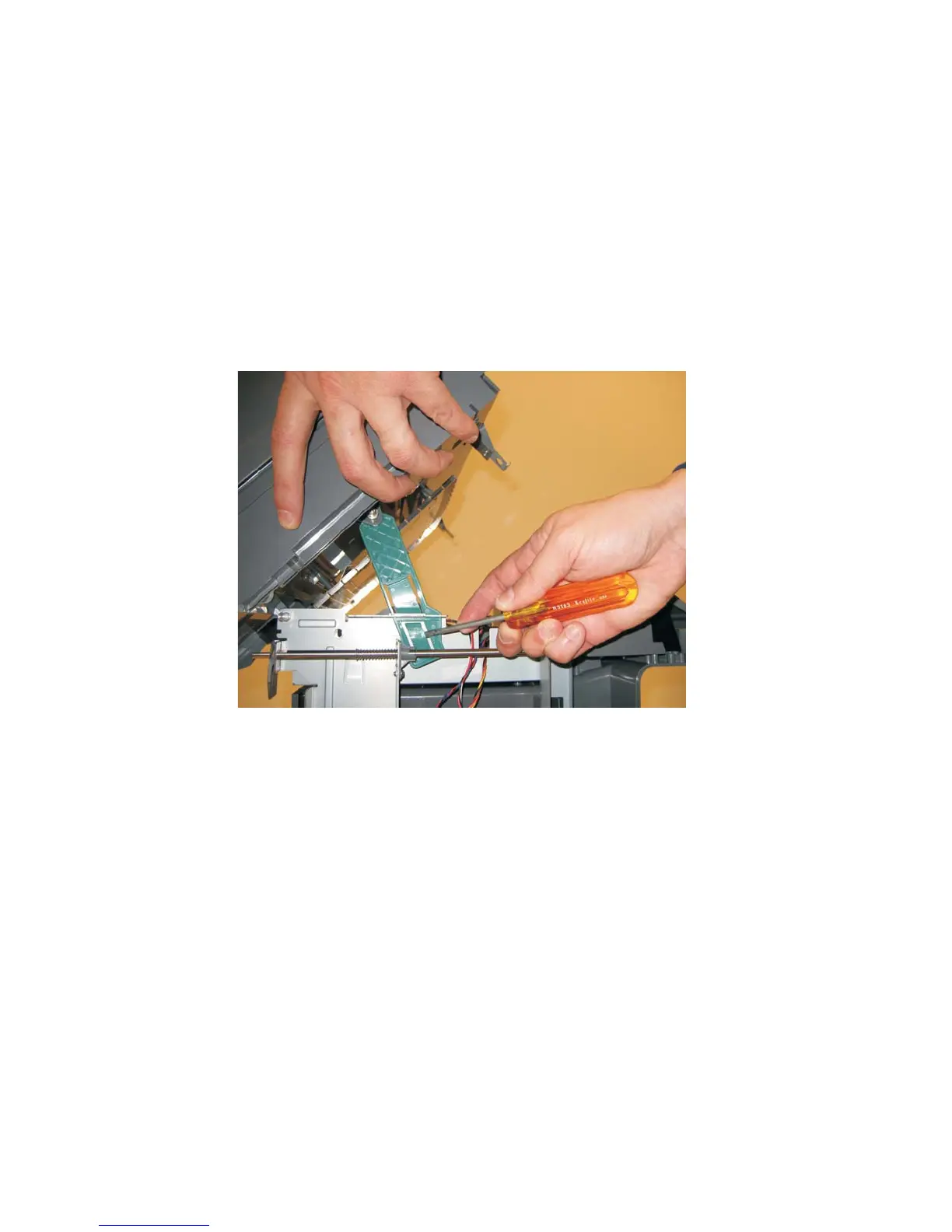

9. Using a flatbed screwdriver, depress the lower tab on the kickstand, and lift the kickstand out of the left rear
frame assembly.
