Lexmark 7014-636 - Imaging Component Removals; ADF Unit Removal

Repair information 4-85
7014-xxx
Imaging component removals
ADF unit removal

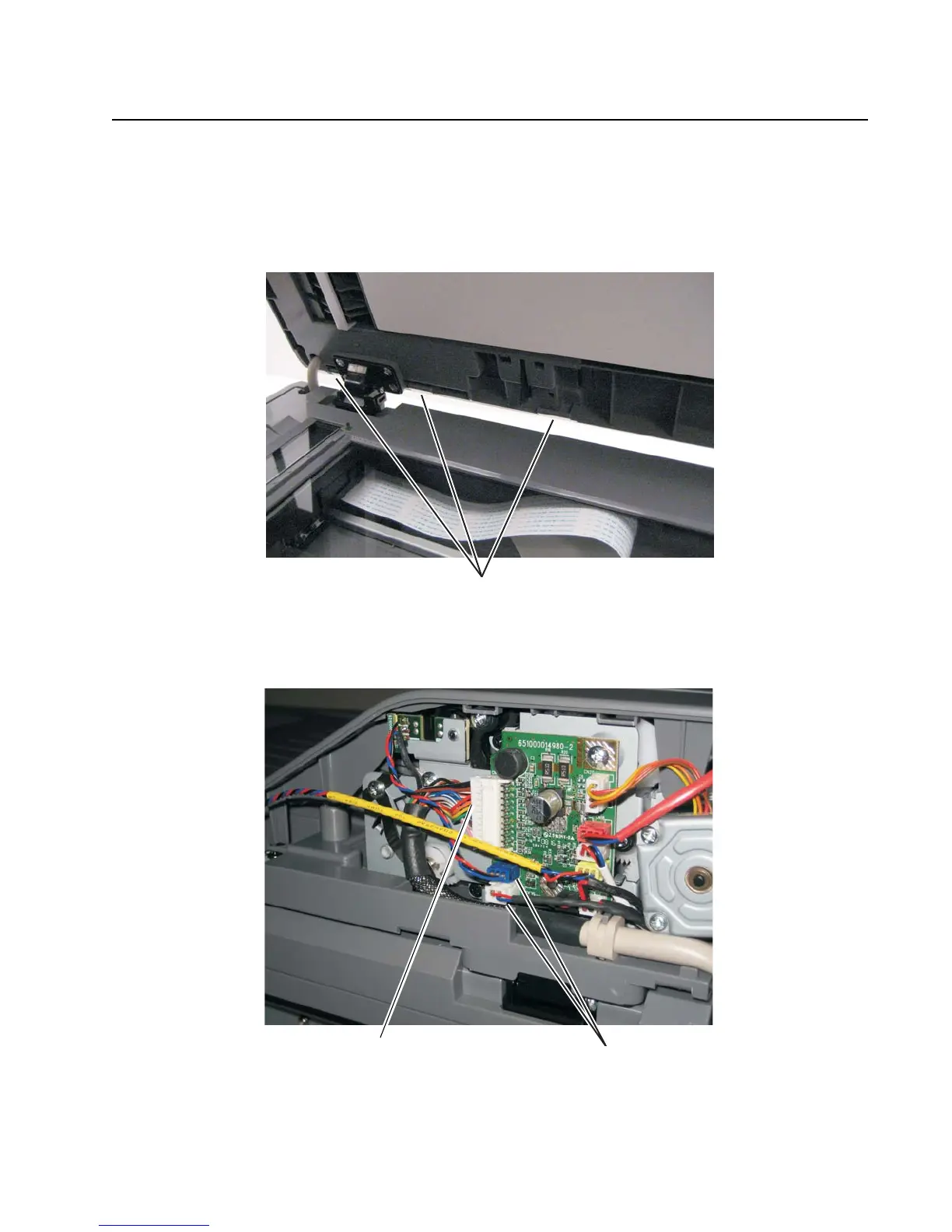

1. Remove the ADF rear cover by releasing the three tabs (A) which fasten the ADF rear cover to the ADF
unit.
2. Disconnect the ADF cable (B) and two sensor connections (C) on the relay card above the ADF relay
cable.
3. Lift the ADF unit up and depress the tabs located on the bottom of the ADF hinges to release the ADF from
the flatbed.
A
B
B
C
