Repair information 4-63
7014-xxx
Operator panel display removal
1. Remove the operator panel keypad.
2. Press the tab on the left side of the operator panel display and raise the operator panel display to the up
position.

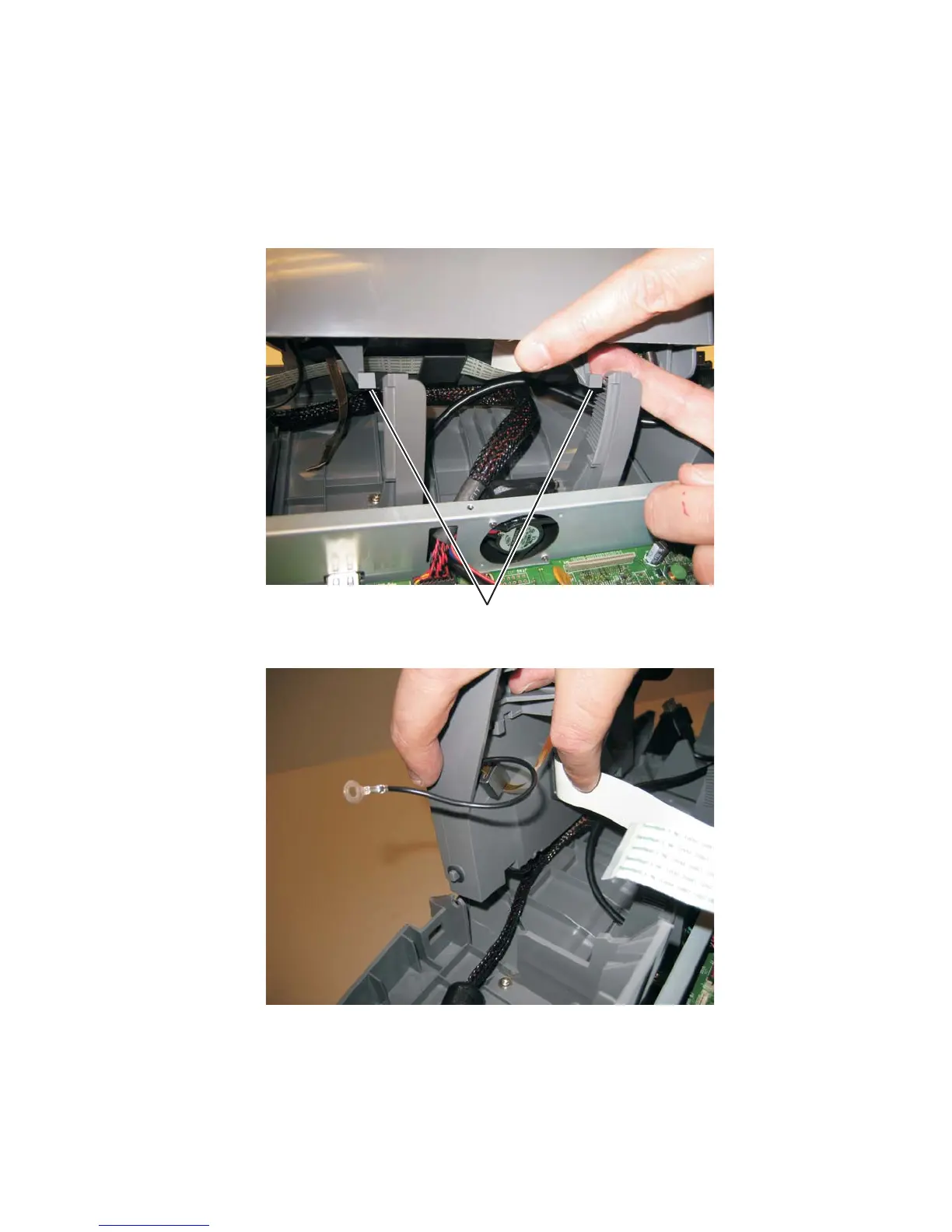

3. Press the tabs (A) which fasten the operator panel display to the display rotation supports to the left to
release the operator panel display from the display rotation supports.
4. Disengage the operator panel display from the right display support and remove it from the MFP.
Note: Remove the operator panel display bezel from the old display. See “Display bezel” on page 3-64.
It will be used on the new operator panel display.
