Repair information 4-33
7014-xxx
Left side cover removal
Note:
• Leave the front door closed when removing the left side cover.
• Make sure that the fuser cables are out of the way when removing the left side cover.
1. Remove the scanner front cover. See “Scanner front cover removal” on page 4-31.
2. Move the scanner assembly to the up position.

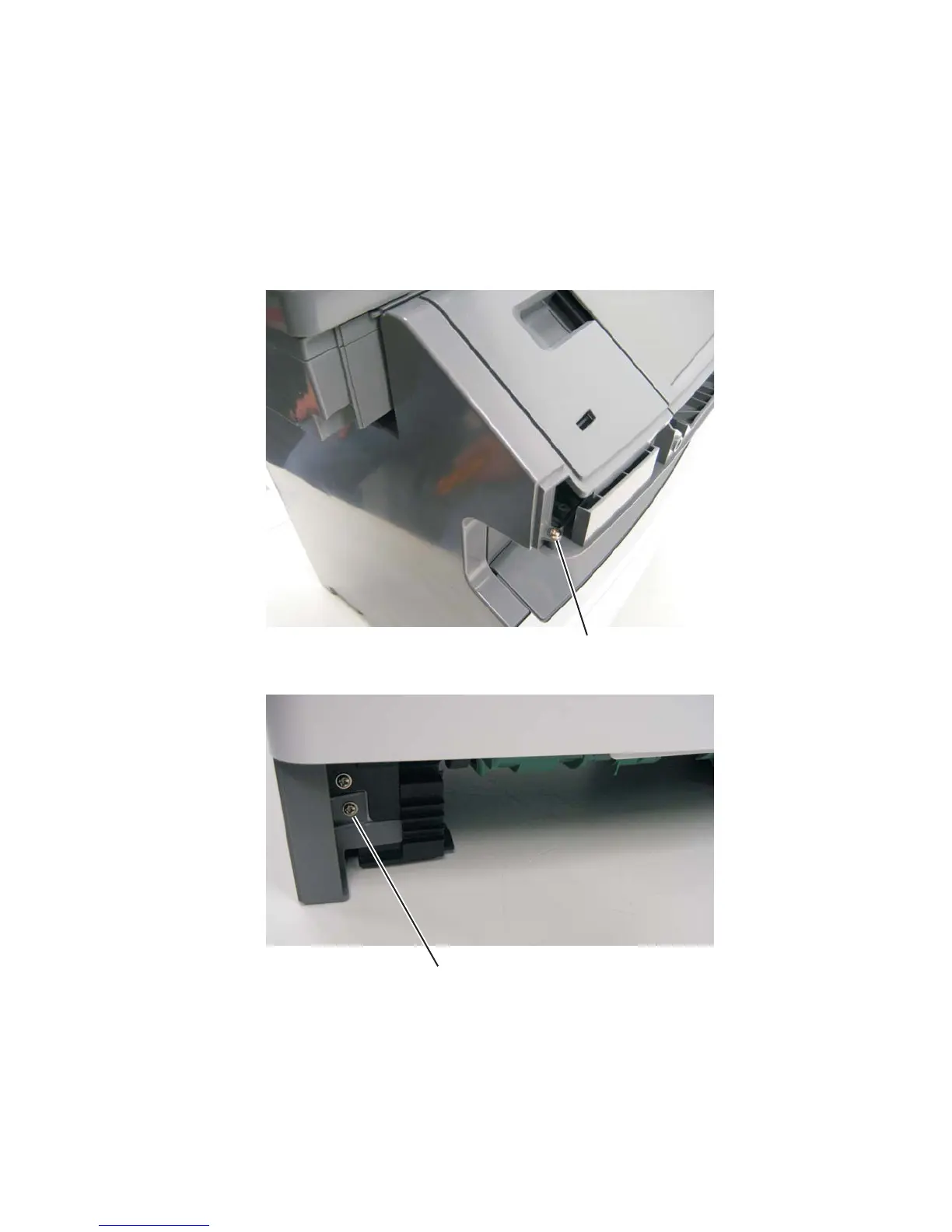

3. Remove the plastic screw (A) that secures the left cover to the tub assembly.
4. Remove the metal screw (B) that secures the left cover to the front of the print engine frame.
5. Move the MFP to the edge of the table.
