Lexmark 7014-636 - Fuser Removal

4-28
7014-xxx

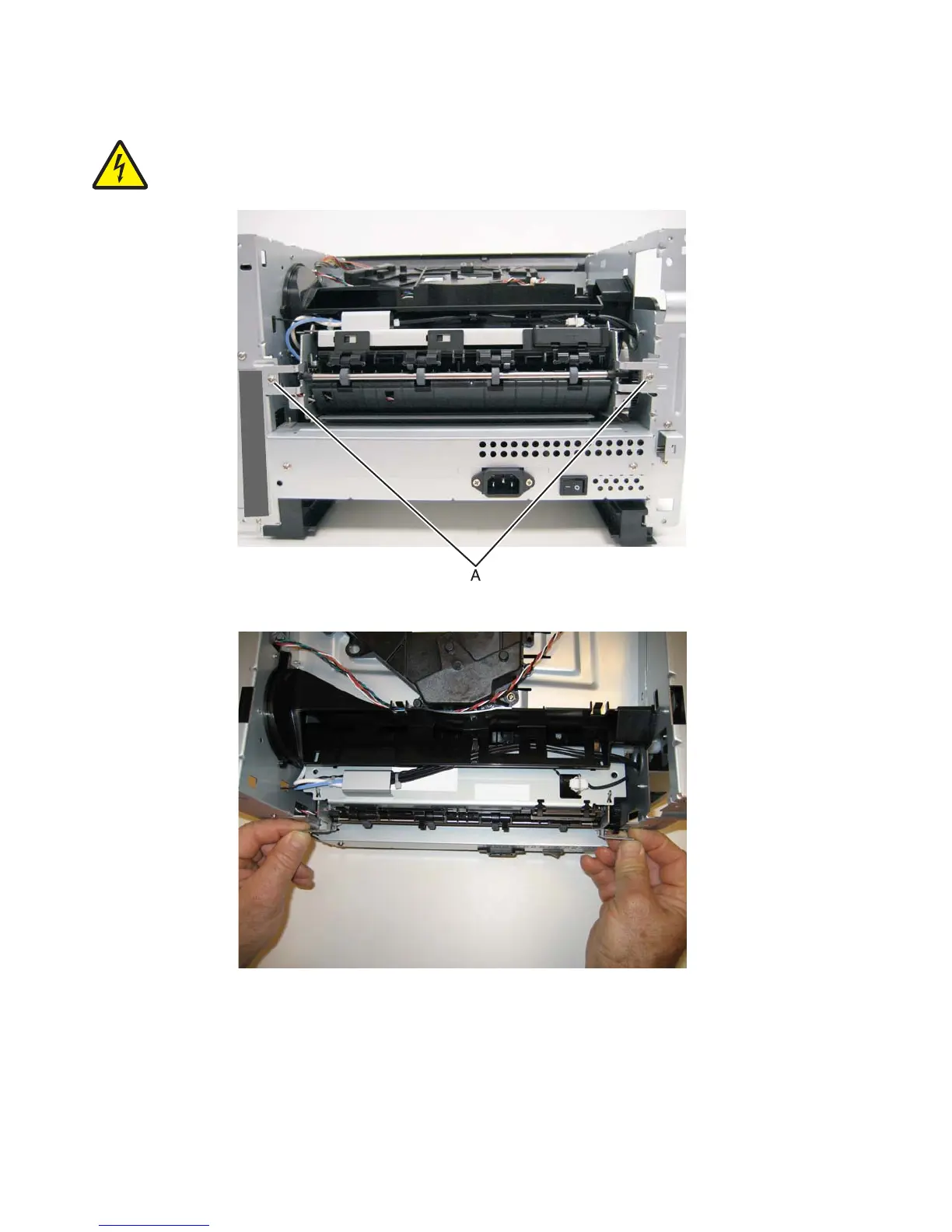

Fuser removal
1. Remove the rear exit guide. See “Rear exit guide assembly with sensor and reversing solenoid
removal” on page 4-75.
2. Remove the two screws (A).
3. Partially pull the fuser forward for better access.
