Lexmark 7014-636 - Front Door Access Cover Removal

4-34
7014-xxx

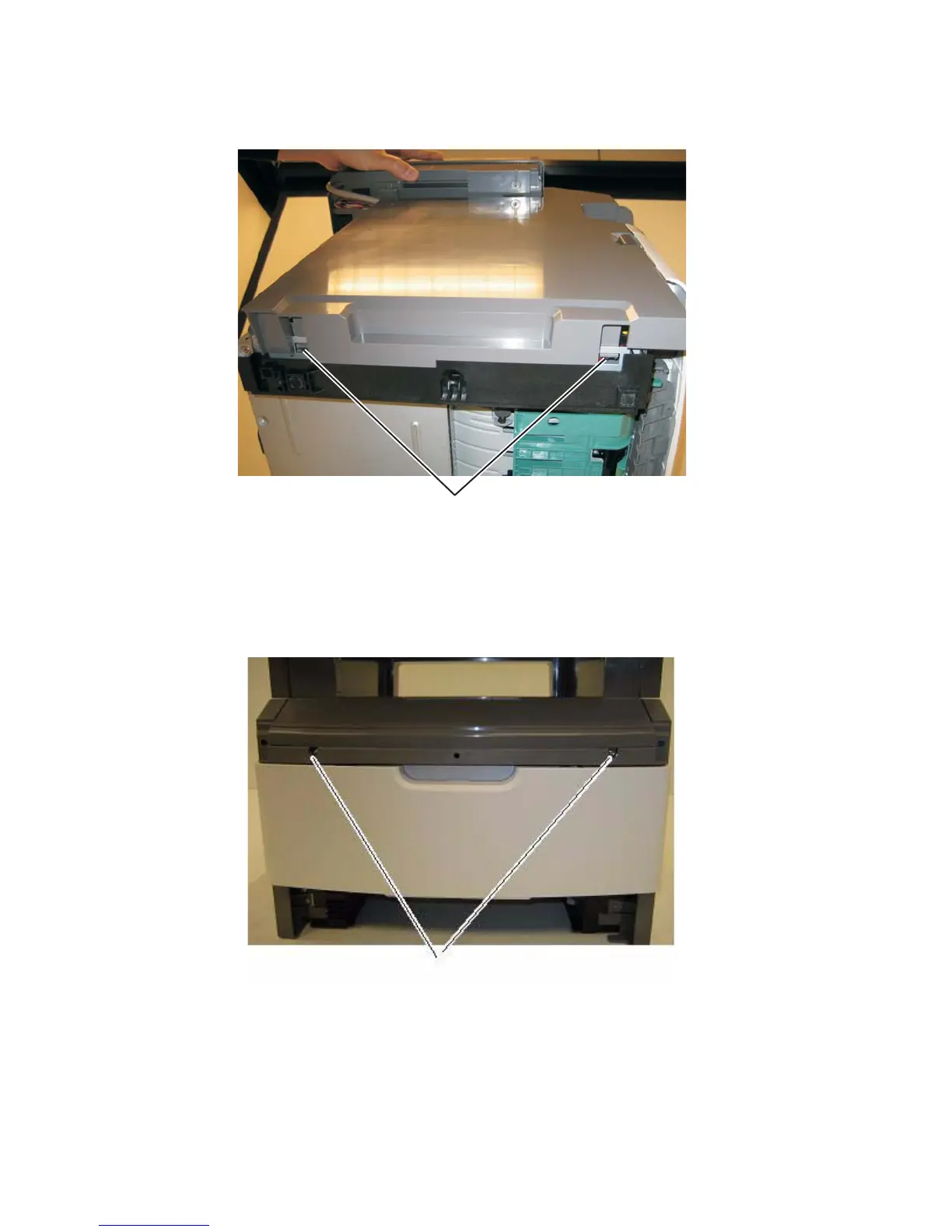

6. Depress the two tabs (C) on the underside of the MFP.
7. Lift the left cover up and pull the bottom of the cover away from the MFP.
Front door access cover removal
1. Remove bumper. See “Nameplate cover removal” on page 4-61.
2. Remove the two screws (A) securing the front door access cover to the front door assembly.
C
A
