Repair information 4-109
7014-xxx
Printer hard disk installation directly on the controller board
Note: Perform steps 1, 2, and 3 from above. before doing the rest of the installation.

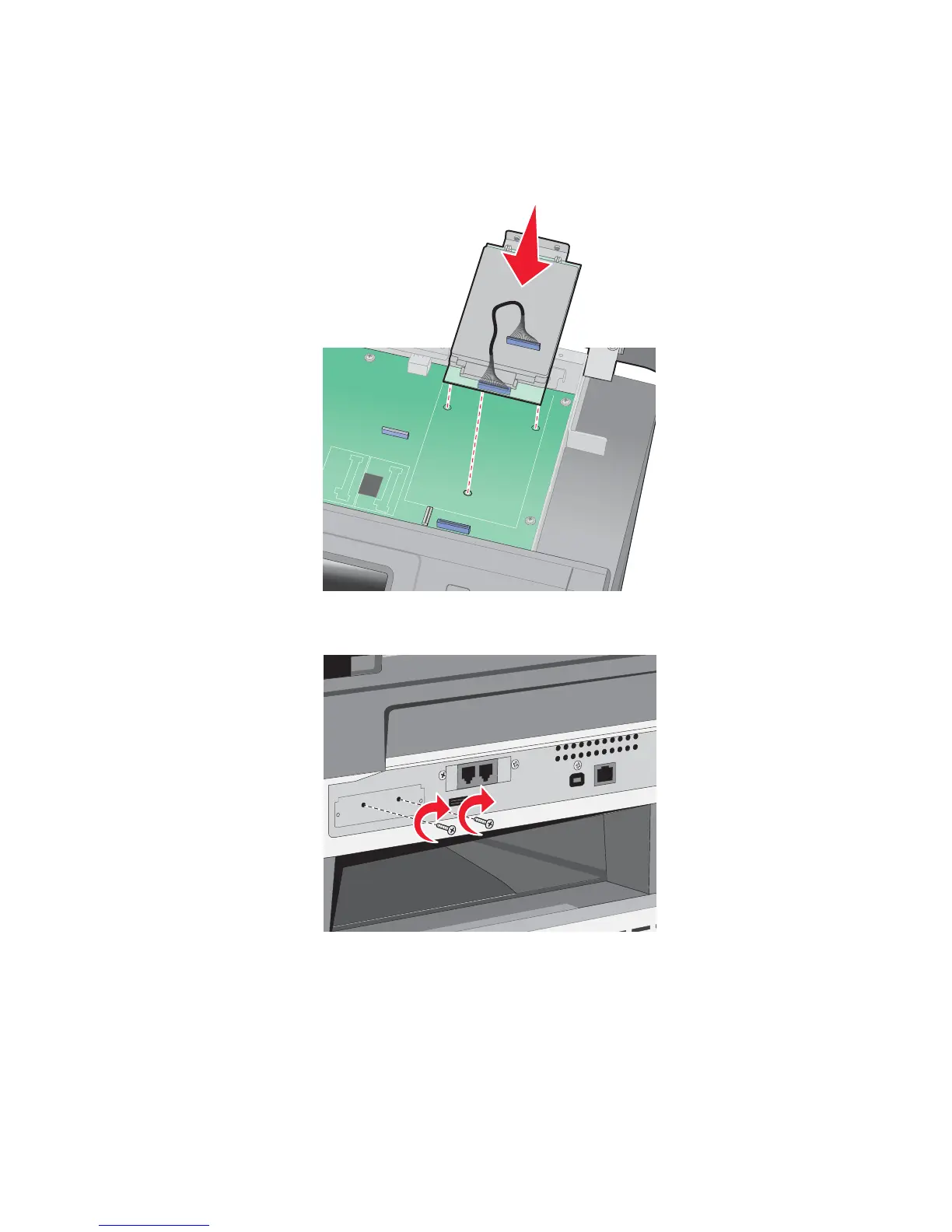

1. Align the printer hard disk standoffs with the holes on the system board.
2. Press the hard disk down until it locks into place.
3. Attach the hard disk to the controller board cage using the screws that came with the hard disk.
