Lexmark 7014-636 - Page 268

4-108
7014-xxx

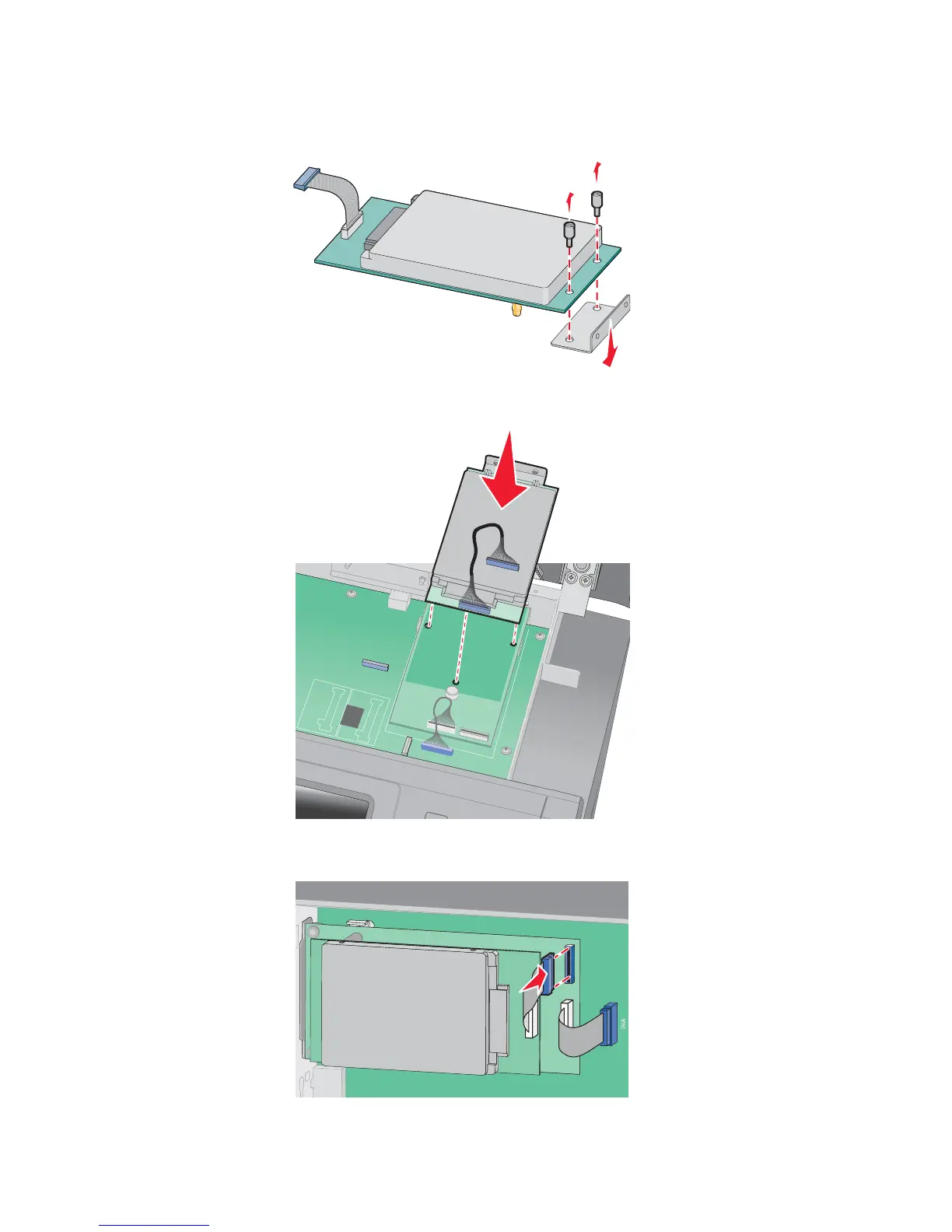

4. Use a flatblade screwdriver to remove the screws attaching the mounting bracket.
5. Place the hard disk on top of the ISP, making sure the standoff on the hard drive line up with the holes on
the ISP.
6. Gently press down on the hard drive until it locks into place.
7. Fasten the hard dive connector into the connector on the ISP card.
