Repair information 4-87
7014-xxx

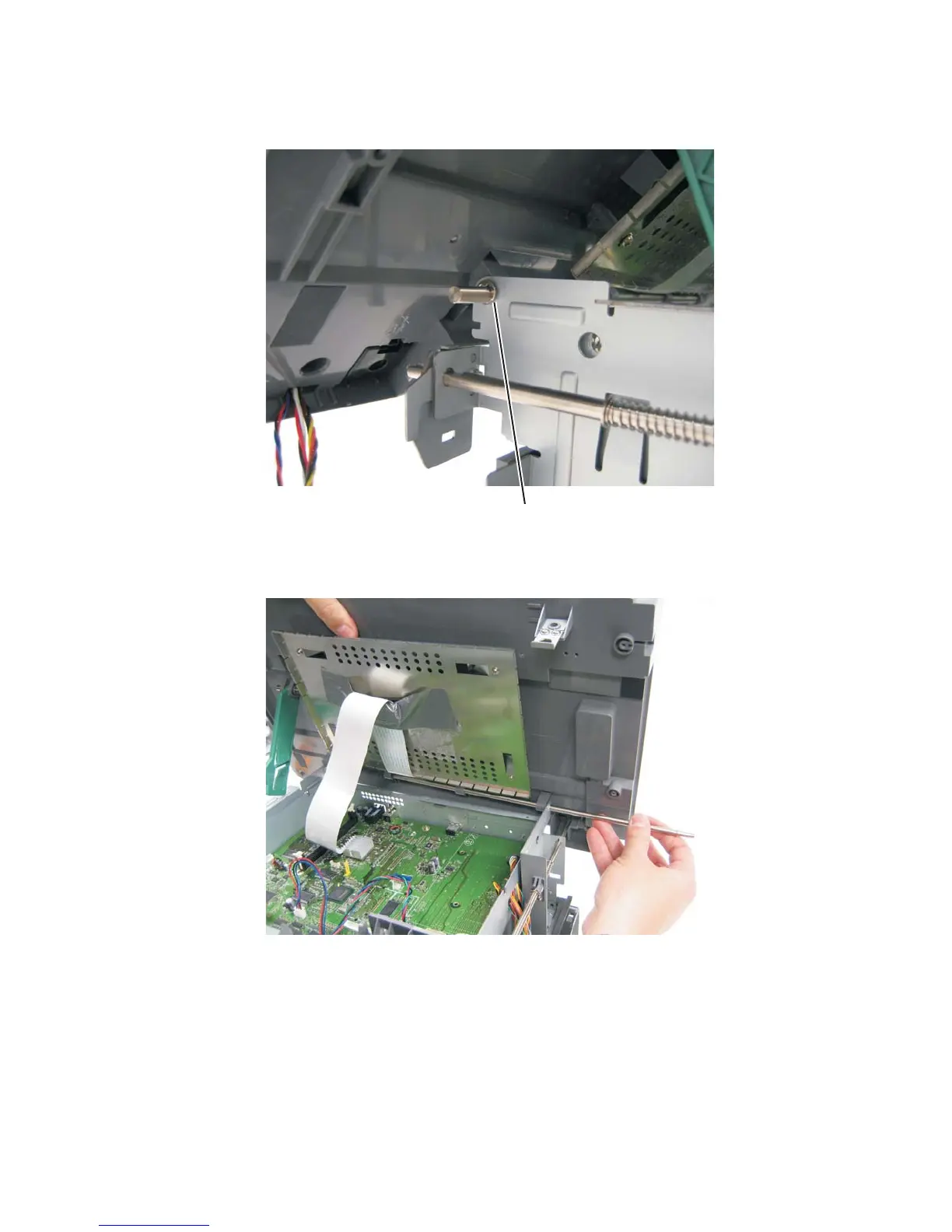

10. Remove the e-clip (A) from the flatbed hinge rod.
11. While holding the front of the flatbed with one hand, pull the flatbed hinge rod out.
12. Lift and remove the flatbed unit from the MFP.
B
A
