Lexmark 7014-636 - Page 209

Repair information 4-49
7014-xxx

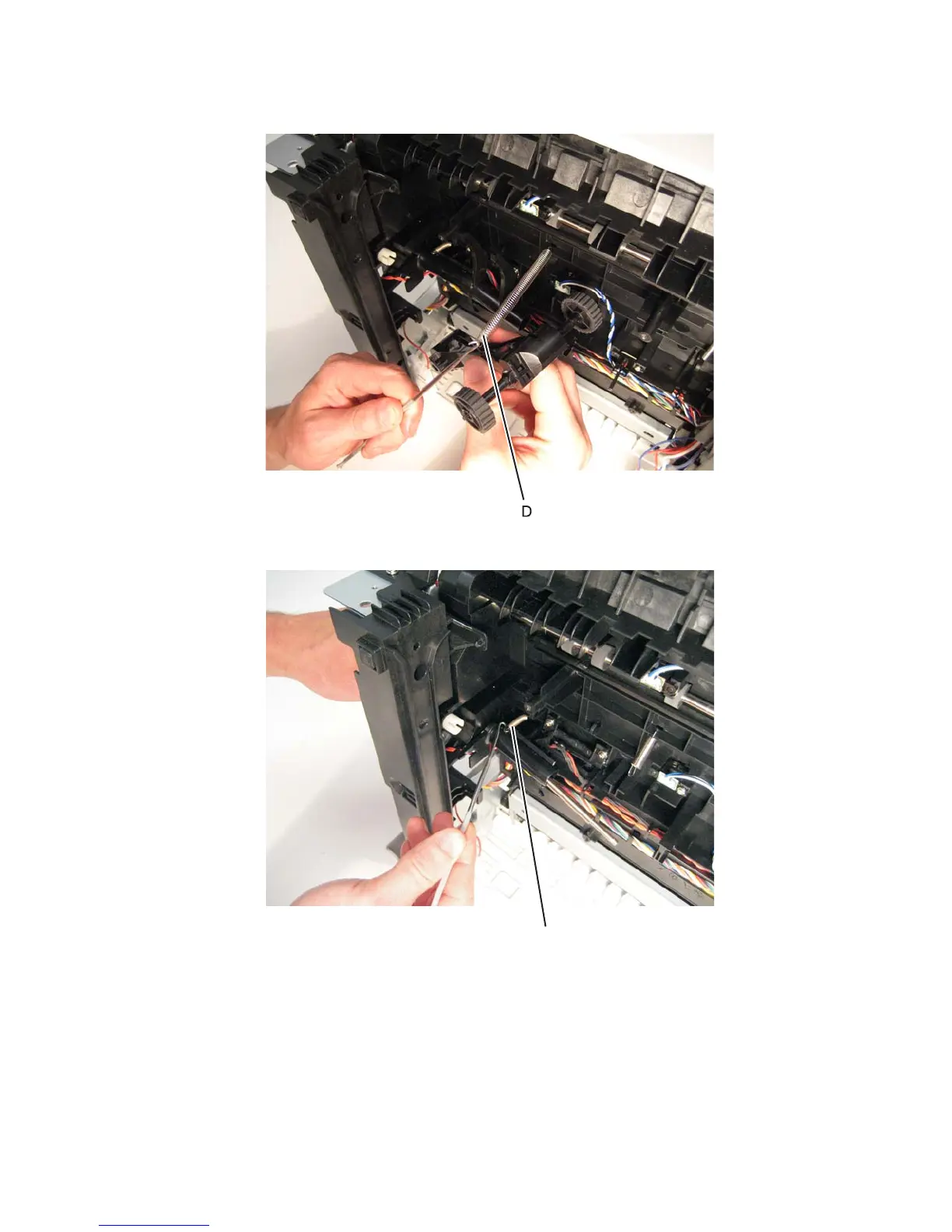

10. Pull out the auto compensator shaft, and remove the spring (D).
11. Remove the auto compensator shaft.
12. Disconnect the spring (E) from the cylinder.
13. Remove the media ACM ASM feeder.
E
