Lexmark MS826 Service Manual

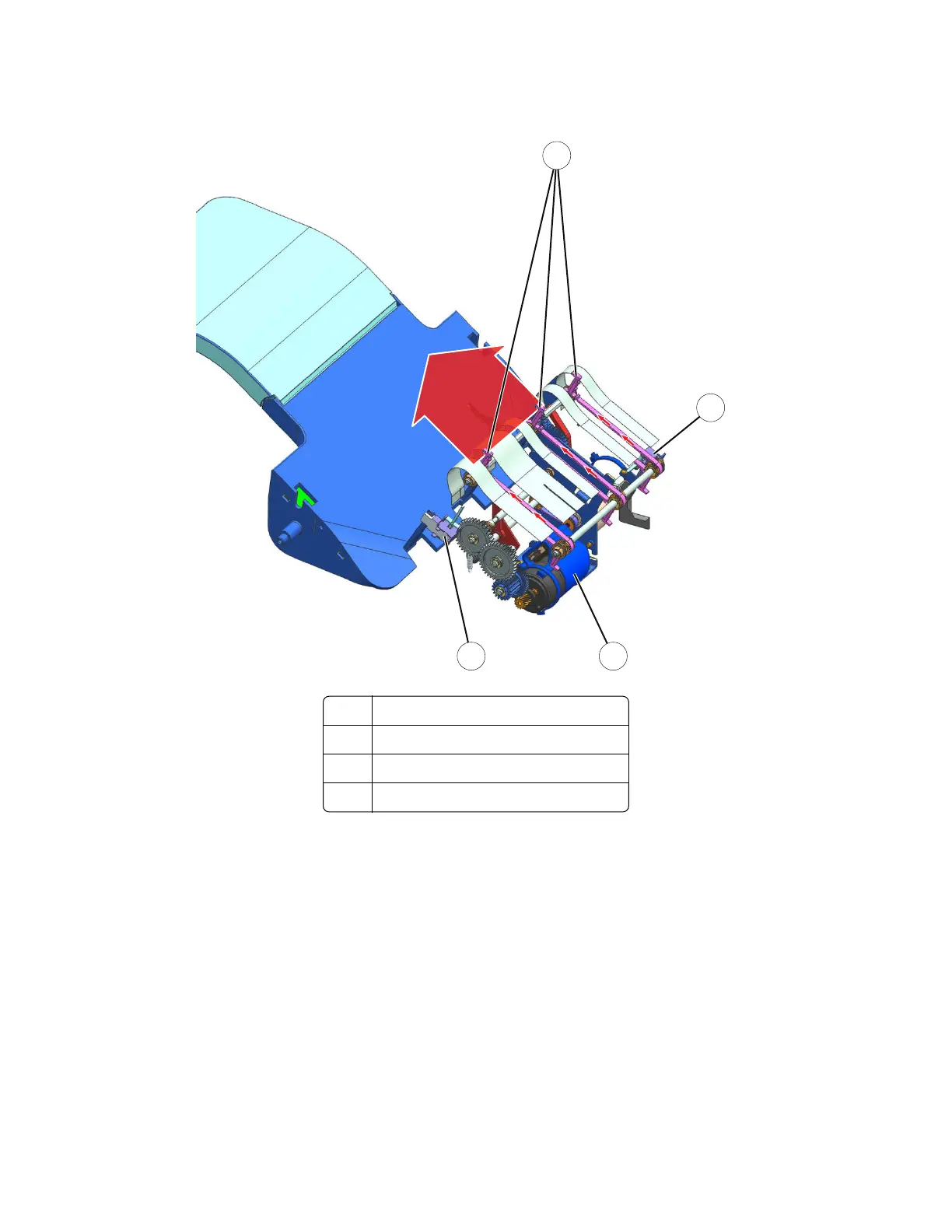

SHPF ejector drive
4
3
2
1
1 Ejector paddles
2 Sensor (staple throat paper present)
3 Sensor (ejector)
4 Motor (ejector)
After the paper stack is stapled, the ejector paddles connected to a belt push the stack toward the bin.
The motor (ejector) drives the ejector belt. The ejector belt is detected at its home position by the sensor
(ejector).
4064
Theory of operation
910

Lexmark MS826 Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 70 ppm
Print Resolution	1200 x 1200 dpi
Duplex Printing	Standard
Monthly Duty Cycle	Up to 350, 000 pages
Processor Speed	1 GHz
Recommended Monthly Page Volume	5, 000 - 75, 000 pages
First Page Out	As fast as 4 seconds
Standard Memory	1024 MB
Maximum Input Capacity	4, 400 pages
Connectivity	USB, Ethernet, Wireless
Media Types Supported	Cardstock, Envelopes, Plain paper
Operating Systems Supported	Windows, macOS, Linux
Standard Paper Input	650 pages
Weight	52.5 lbs
