Lexmark MX911dte - Page 266

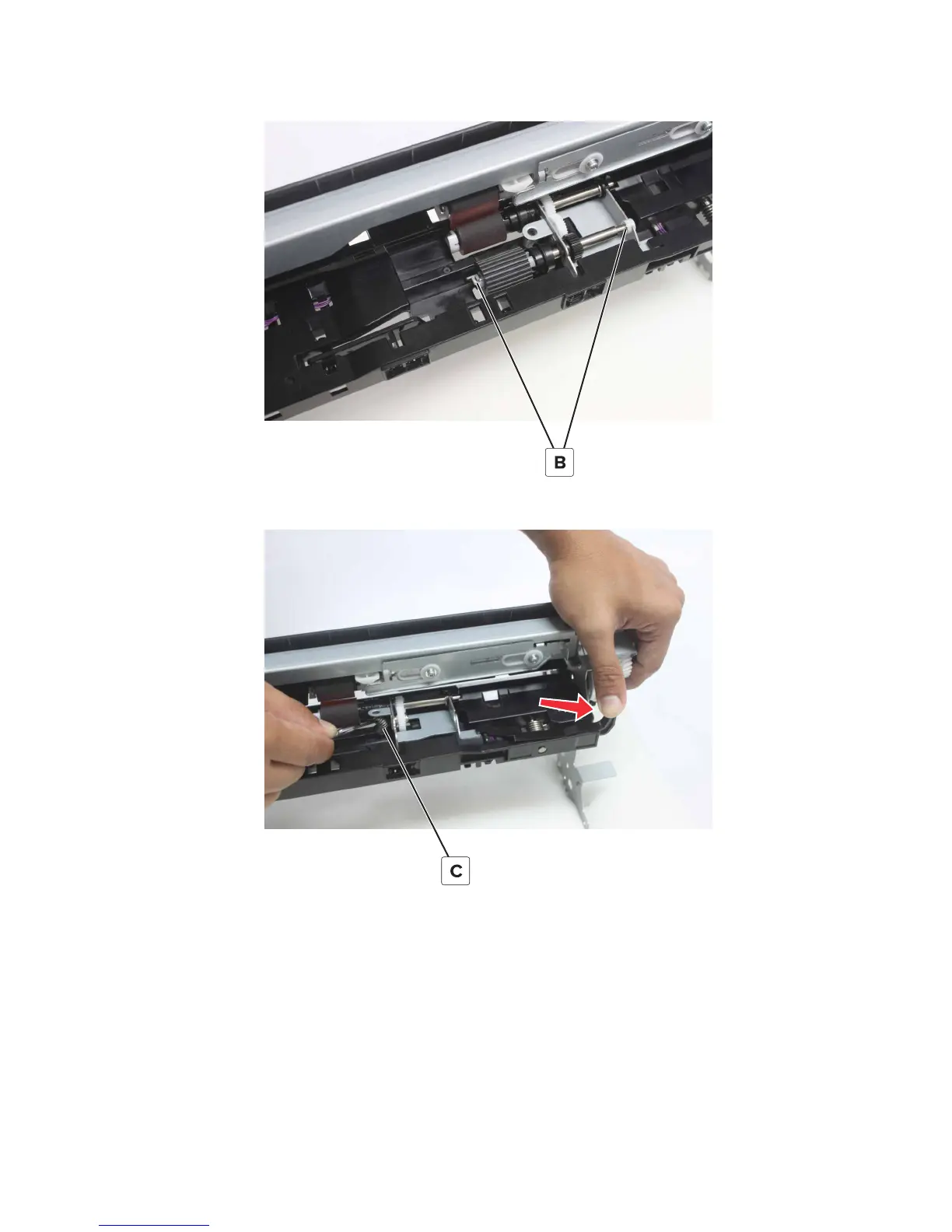

3 Release the clips (B), and then remove the pick tire, bushing, and shaft.
4 Press the lever, remove the spring (C), and then install the replacement spring from step 2.
5 Perform a print job to verify the adjustment.
7421
Repair information
266
