Lexmark MX911dte - ADF Glass Cleaning Roller Removal

ADF glass cleaning roller removal
1 Remove the ADF assembly. See “ADF assembly removal” on page 391.

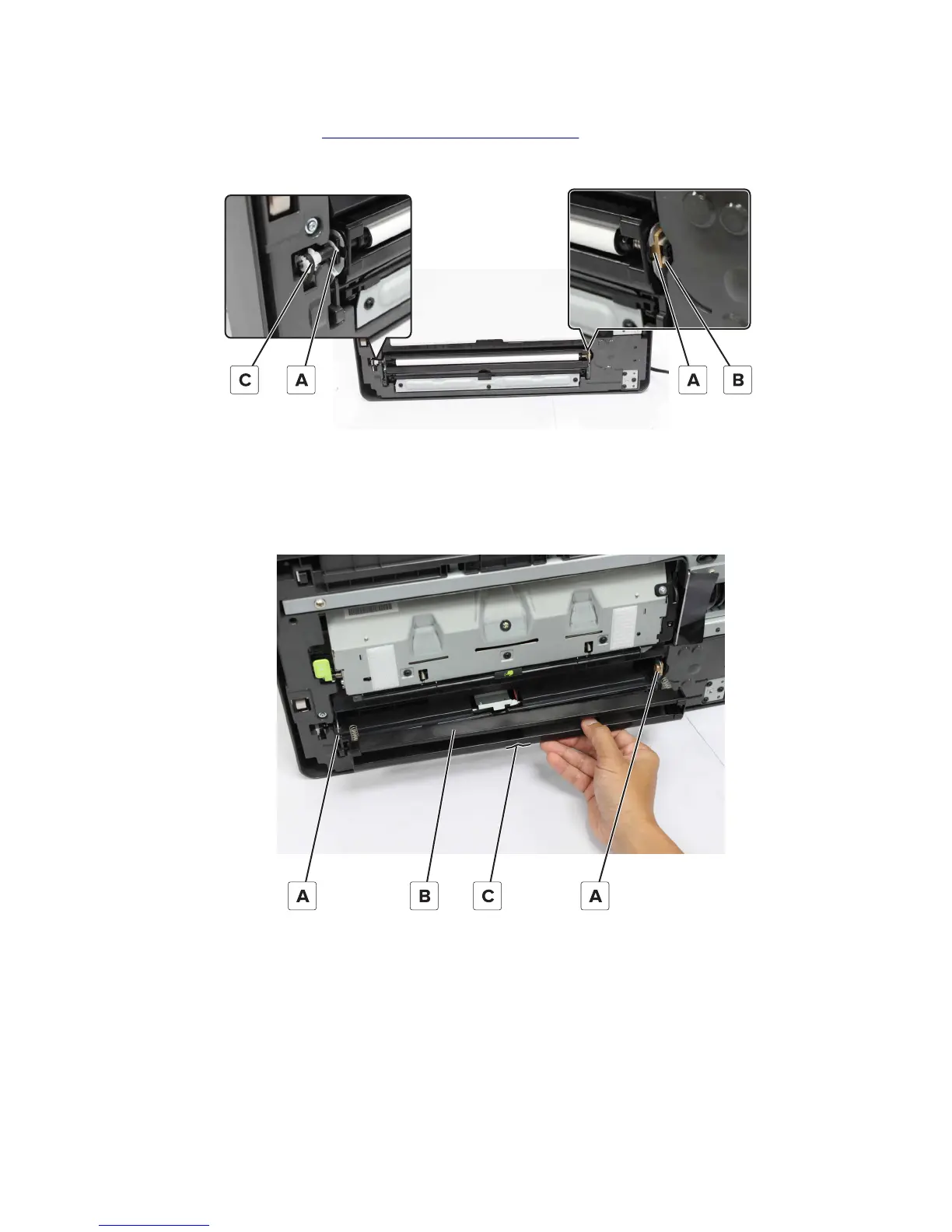

2 Remove the clips (A) from the ADF glass cleaning roller, and then remove the bushing (B) and belt (C).
3 Remove the roller.
Installation notes:
a Install the two bushings (A) on the brackets, and then install the housing (B) with its notch (C) on the underside
of the housing.
7421
Repair information
403
